ValueCAN 4-2C (USB-C) & J1939 Type 2 / RP1210 Cable Kit
This kit combines our low-cost dual-wire ValueCAN (Two Channels of CAN / FD) tool and the Heavy Duty Cable for connecting to the CAN / FD /J1939 Type 2 network on commercial vehicles. The ValueCAN's driver set includes a RP1210B DLL for use with RP1210 compliant software applications.
At a glance
- CompatibilityThis kit combines our low-cost dual-wire ValueCAN (Two Channels of CAN / FD) tool and the Heavy Duty Cable for connecting to the CAN / FD /J1939 Type 2 network on commercial vehicles
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 3 to 5 Business Days
- Country of originUS

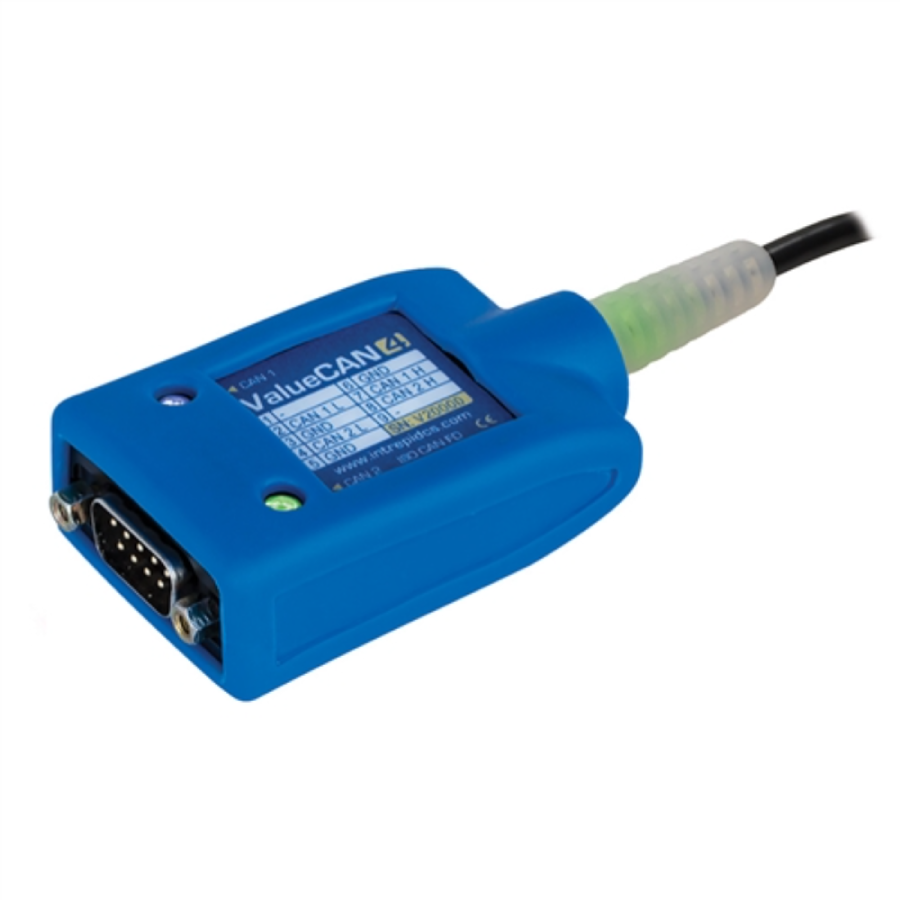

This kit combines our low-cost dual-wire ValueCAN 4-2C (Two Channels of CAN / FD) tool and the Heavy Duty Cable for connecting to the CAN/J1939 Type 2 network on commercial vehicles. The ValueCAN 4-2C connects to the PC via the USB-C connector.
The ValueCAN 4-2's driver set includes a RP1210B DLL for use with RP1210 compliant software applications.
The ValueCAN 4-2 also supports CAN FD for future compatibility with extensions to J1939 or proprietary uses.
Related Software Tools: Vehicle Spy software is a single tool for diagnostics, node/ECU simulation, data acquisition, automated testing, and in-vehicle communication networks bus monitoring. Vehicle Spy was designed to with a focus on ease-of-use and user productivity.
Please visit the Vehicle Spy webpage for the most up to date information.
J1939 Pins
| Function | Pin |
| Battery (-) GND | 1/A |
| Battery (+) | 2/B |
| J1939 1 H (CAN 1 H) | 3/C |
| J1939 1 L (CAN 1 L) | 4/D |
| CAN_SHLD | 5/E |
| J1939 2 H (CAN 2 H) | 8/H |
| J1939 2 L (CAN 2 L) | 9/J |
ValueCAN 4-2 Pins
| Pin | Description |
| 1 | Trigger Pin |
| 2 | CAN1 Low |
| 3 | GND |
| 4 | CAN2 Low |
| 5 | GND (Shield) |
| 6 | GND |
| 7 | CAN1 High |
| 8 | CAN2 High |
| 9 | V+ |
| Harmonized Code | 9031808070 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | Each |
| Country of Origin | US |
