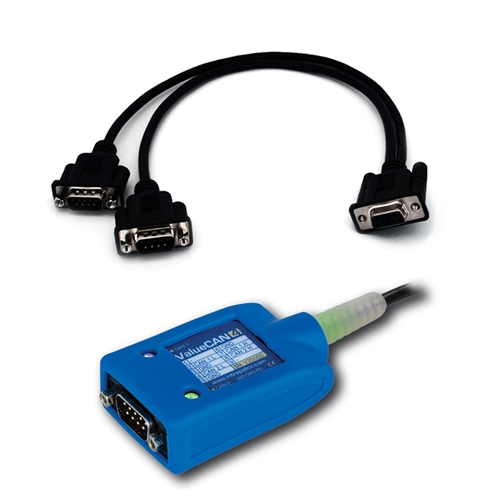

ValueCAN 4-2A & DB-9 2x Y-Splitter Cable Kit
ValueCAN 4-2A with VCAN DB-9 Y-Cable Kit
At a glance
- CompatibilityValueCAN 4-2A with VCAN DB-9 Y-Cable Kit
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 3 to 5 Business Days
- Country of originUS
2 channel CAN / CAN FD with USB cable (USB-A). Does not include cable for OBD / J1939.
Low Cost, High Value Vehicle Network Interface for CAN FD
The ValueCAN 4-2 is the next-generation, low-cost, high-performance tool for CAN FD, backward compatible with CAN 2.0. The ValueCAN 4-2 comes with all the field-tested features of the ValueCAN 3, plus much more, including software-controlled CAN termination, increased buffer size, improved USB latency performance, and standalone operating capability using a USB charger.
The ValueCAN 4-2 supports 2x CAN or CAN FD channels, has USB Type A and Type C options available, and certified drivers for Windows 7, 8, 10 and Vista.
The ValueCAN 4-2 is fully isolated from the PC, and its isolation layer is self-powered from USB, which eliminates the need for external power for the CAN transceiver. The ValueCAN 4-2’s isolation, a feature not common on low-cost interfaces, eliminates issues with grounding or noise affecting your PC and its communications. The ValueCAN 4-2 is also electrically hardened to survive an abusive environment, including reverse battery voltage and electrical transients. To make wiring easy, the device pinout is printed clearly on the housing. The ValueCAN 4-2 is also backed by a one-year warranty.
The ValueCAN 4-2 has been tested and verified to operate on high-bandwidth CAN FD networks. This includes 100% utilization at 10M bit speed on both channels.
The ValueCAN 4-2 can load real-time Function Block scripts and C code created with Vehicle Spy Professional. These scripts then execute in real time with microsecond resolution. The scripts can be controlled and monitored with a PC application or operate in standalone mode.
The ValueCAN 4-2 is compatible with J1939, OBD2 on CAN, Keyword Protocol over CAN, UDS diagnostics, CCP/XCP, DeviceNet, and CANOpen. We offer cables for J1939 and automotive diagnostics on CAN. ISO15765 for CAN FD is implemented in hardware, which allows for super-fast ECU flashing.
Vehicle Spy is a powerful vehicle bus analyzer for monitoring messages and configuring baud rates. The professional user will want to upgrade to the full version of Vehicle Spy, which lets you filter traffic, decode message data, build scripts, and simulate other nodes. You can also build GUIs to control, log, view, and build graphical displays of your data.
For those who wish to write their own applications, the ValueCAN 4-2 includes the neoVI DLL and helpful examples for Python, Visual C++, C++ Builder, LabWindows CVI, LabVIEW, Java, MATLAB, Delphi, Excel, and Visual Basic. For more information, please see the neoVI DLL documentation.
ValueCAN 4-2 Pins
| Pin | Description |
| 1 | N/C |
| 2 | CAN1 Low |
| 3 | GND |
| 4 | CAN2 Low |
| 5 | GND (Shield) |
| 6 | GND |
| 7 | CAN1 High |
| 8 | CAN2 High |
| 9 | V+ |
Physical Dimensions:
- 6'7" (2 m)
- 6.5 oz (183 g)
| ECCN | EAR99 |
|---|---|
| Country of Origin | US |
