Part # obsolete, see NEOVI-RED2-2 or NEOVI-RED2-4 -- ValueLOG Data Logger (standard pinout)

This product is obsolete. The substitute is neoVI RED 2.

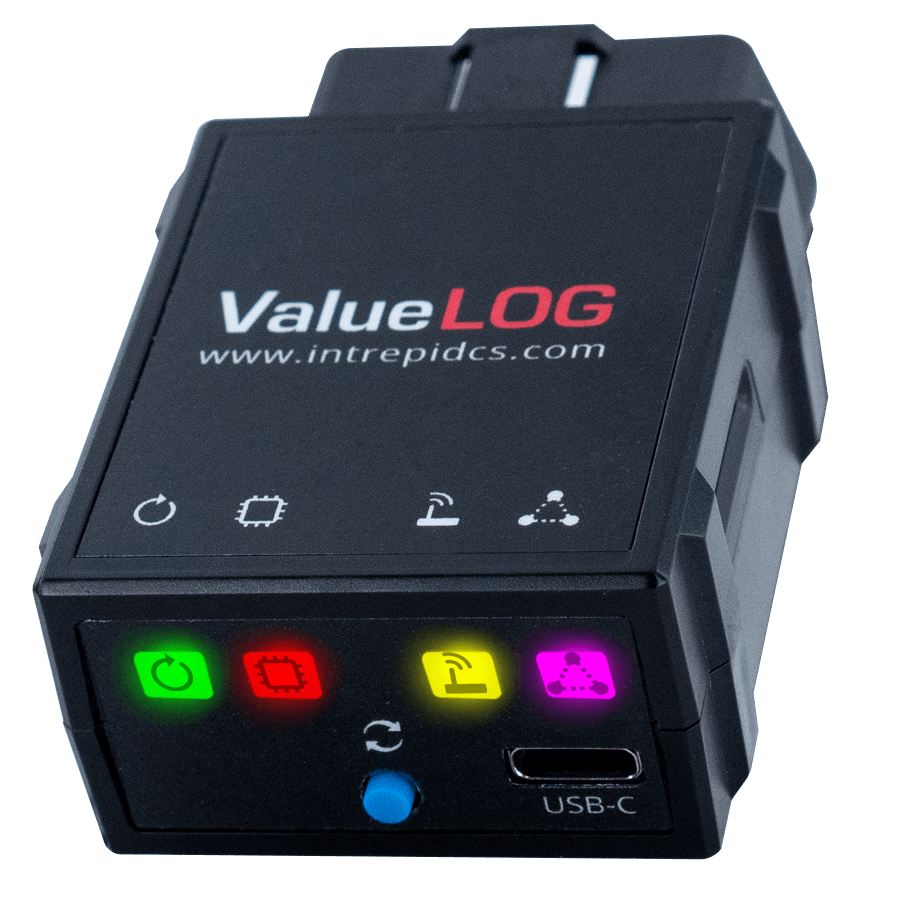

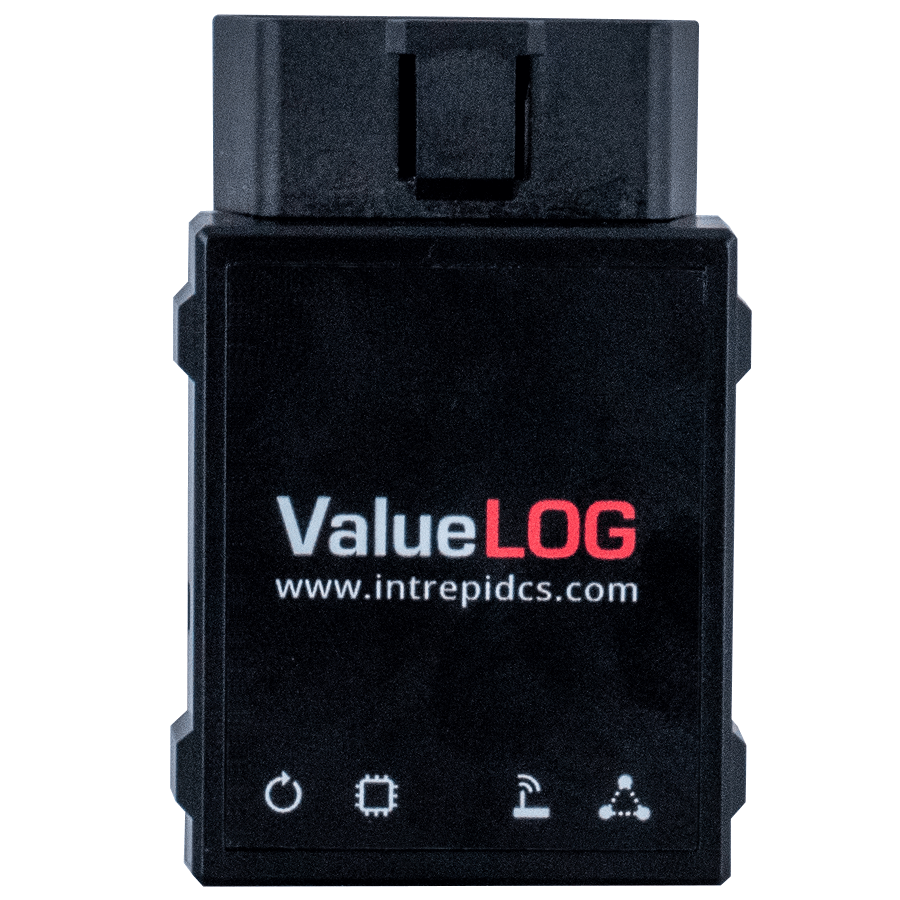

The ValueLOG is the next-generation, low-cost, high-performance data logging device for CAN FD and LIN networks. The ValueLOG includes Ethernet (DoIP), four channels of CAN FD (Including SW CAN) and LIN in one tool. All channels run simultaneously and are time-stamped in hardware.

Applications

• Standalone data logger
• Standalone ECU or vehicle simulator
• In-vehicle data acquisition system
• Captive test fleet data collection
• Fleet management
• Vehicle interface with J2534 and RP1210

Features

• Up to 4x CAN FD
• Up to 1x SW CAN
• Up to 1x LIN / K-Line
• Up to 1x Ethernet (100BASE-T1 for DoIP, switchable for 2x CAN FD network)
• 32GB eMMC storage
• External GPS antenna support for collecting locations during data logging sessions
• General purpose engineering tool for OBDII, enabling a wide array of applications such as data logging, simulation and gatewaying
• Optional Unique configurable OBD II pinout through neoVI Universal Connector (NUC) architecture (optional)
• 9-axis Inertial Measurement Unit
• RTC with battery

Stand-Alone Logging, Scripting, Reflashing and Simulation

In addition to working as a PC interface, the ValueLOG can log vehicle data in stand-alone mode. It can run real-time scripts, log data to internal flash memory, and simulate ECUs and gateways. These features also make it possible to run a script to reflash ECUs using data from flash memory.

Vehicle Spy Application Software

Intrepid’s Vehicle Spy software fully supports the ValueLOG. With Vehicle Spy, users can monitor and transmit on all ValueLOG networks simultaneously. Vehicle Spy is required to configure stand-alone scripts and data logging. Users can take advantage of the powerful interface to load databases and to write and debug scripts before downloading them to the device.

The Power of Scripting – CoreMini

If you need to support a proprietary protocol, set up a simulation to run in parallel with the data logger, or any other custom action, the system offers a scripting environment for you to expand the base functionality to fit your unique needs. This makes the entire system very flexible and adaptable.
