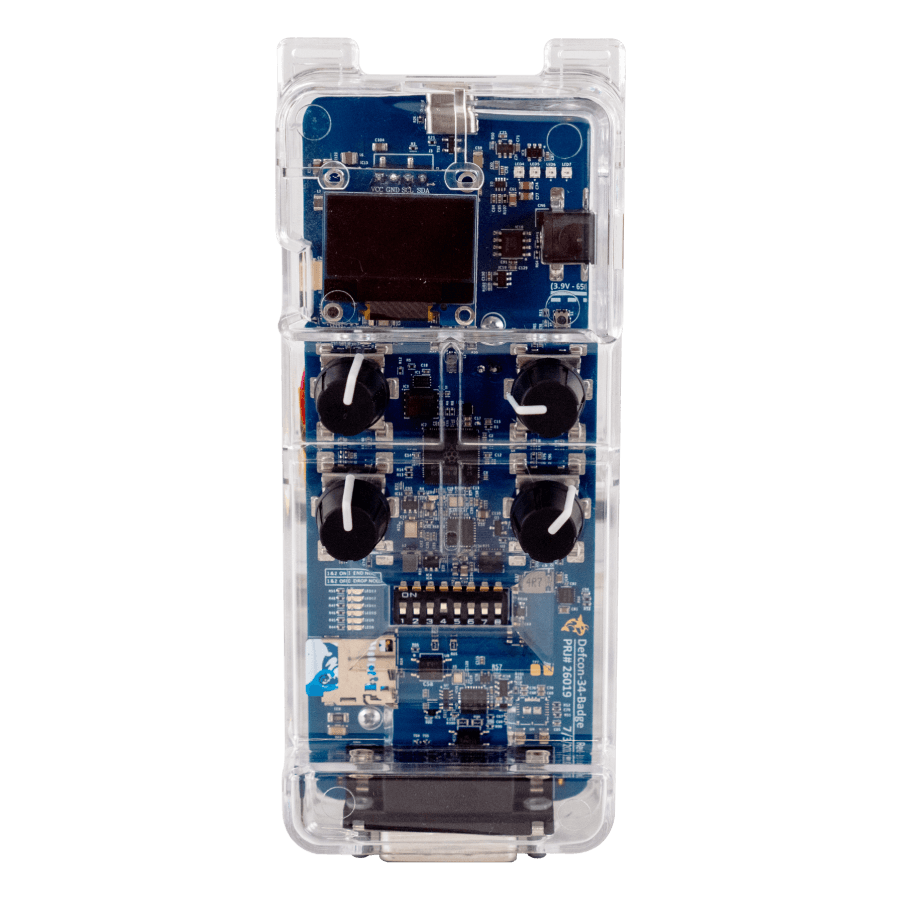

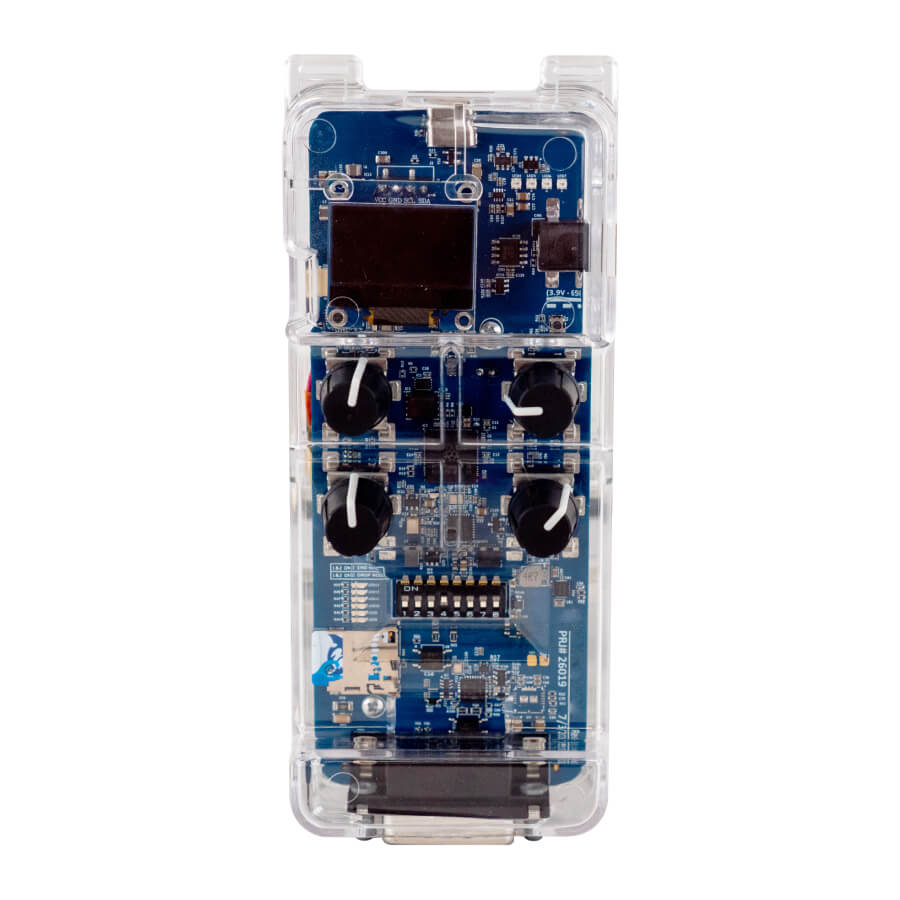

10BASE-T1S / T1L / CAN-FD Simulator

The Intrepid T1S-T1L-CANFD SIM consolidates multiple specialized network testing tools into a single portable device, providing researchers and security professionals direct access to industrial and automotive communication buses with built-in termination, intelligent bus monitoring, and field-proven durability.

Features:

• 1x CAN / CAN FD port for automotive networks and factory automation
• 1x 10BASE-T1S short-reach industrial single-pair Ethernet ports
• 1x 10BASE-T1L long-reach industrial single-pair Ethernet ports
• USB Network Adapter with 10BASE-T1S and 10BASE-T1L Physical Layer (PHY)
• Internal SD card slot for storage
• USB serial terminal interface for tool integration and scripting
• Durable custom-molded clear case enclosure for field durability
• RS485 (Modbus RTU) with hardware compatibility for legacy and modern PLCs, RTUs, SCADA
• Selectable termination for T1S and software-controlled termination for CAN and RS485
• OneWILi API support (Rust, C/C++, Python, rTHON, WASM)
• Four programmable 360 Degree Encoder with buttons
• Four programmable multi-color LEDs
• Customizable 12×4 character OLED display.
• Power and configure via USB Type C
• Internal 1000 mAh 3.7V lithium battery for untethered field operation
• Independent Power Zones with selectively power CAN, T1S, T1L, and LED subsystems to extend battery runtime during untethered field auditing and optimize thermal performance

High-Voltage Industrial Power Subsystem:

Engineered to safely survive real-world environments, the badge features three separate power rails to pull power directly from the asset under test:

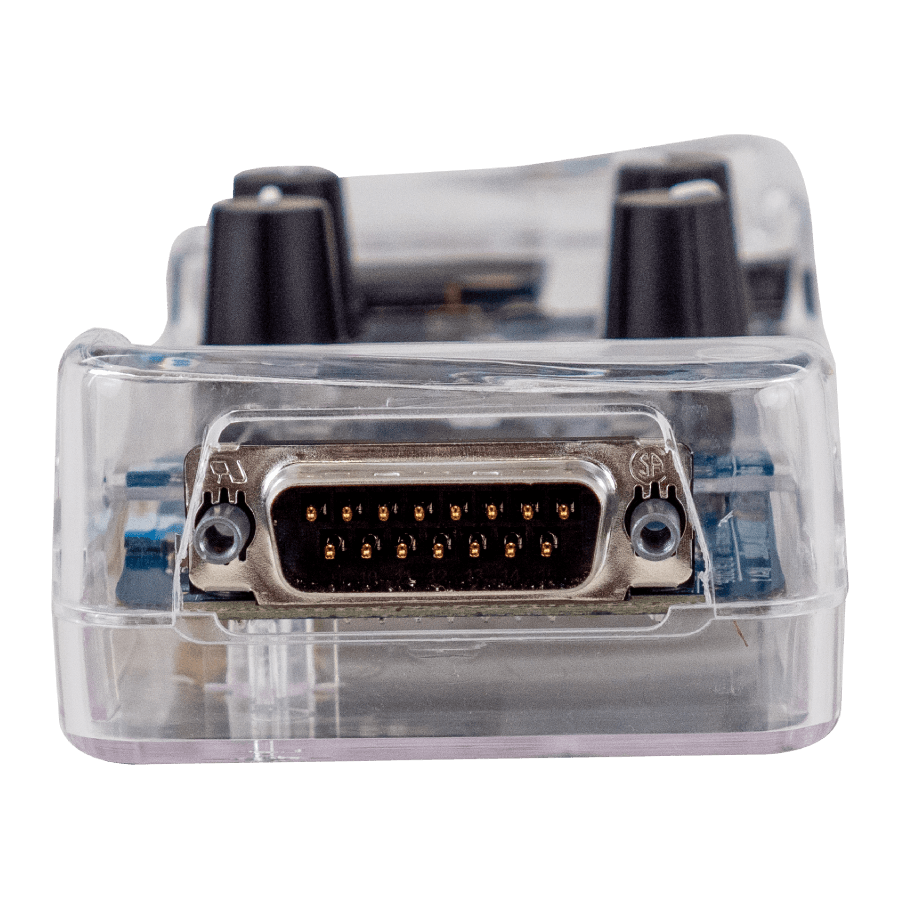

• DB15 Input (3.9V – 65V): Connects directly to standard 12V automotive batteries or 24V industrial control cabinets without worrying about voltage spikes or needing external regulators.

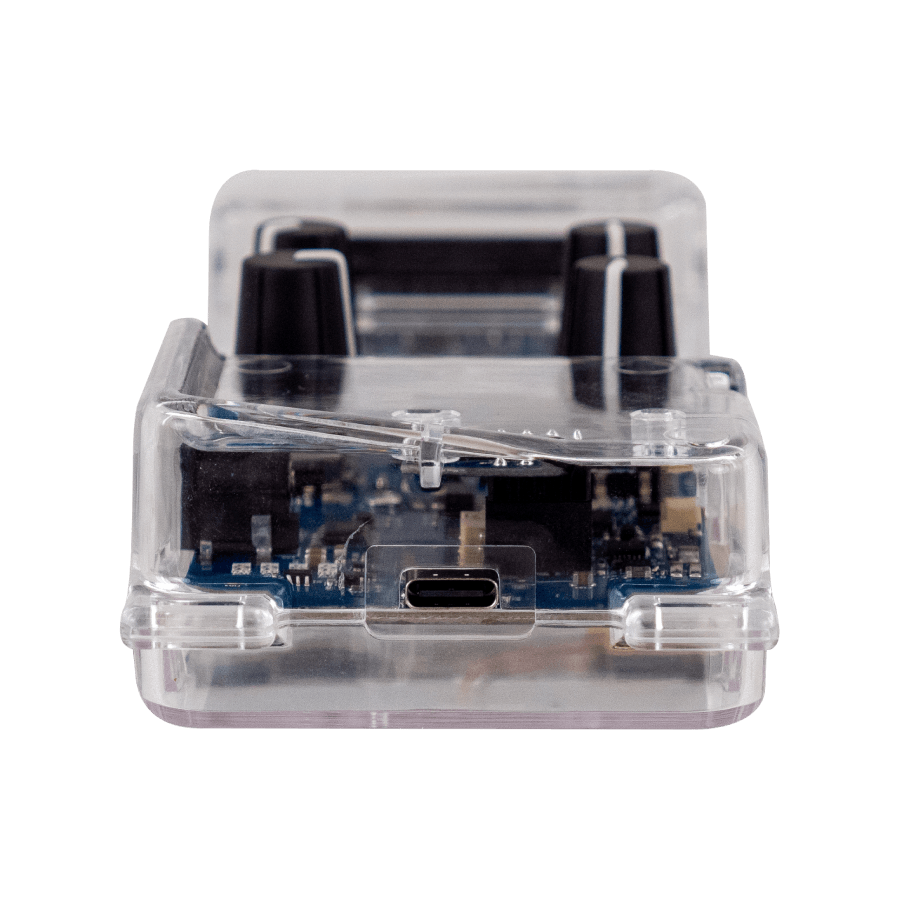

• USB-C Input (5V): Standard hardware interface for bench power and desktop diagnostics
• Internal Battery (3.7V / 1000mA): Fully untethered hardware power supply for portable field auditing.
