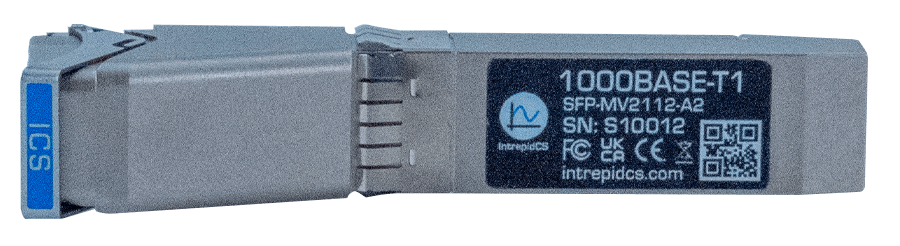

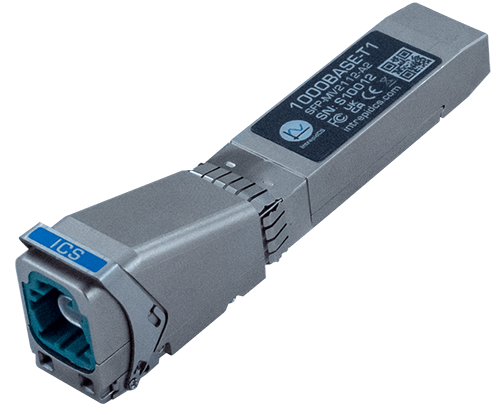

100/1000BASE-T1 SFP Module (88Q2112-A2)

Intrepid Controls has developed a two wire ethernet Small Form Pluggable (SFP) module based on the Marvell 88Q2112-A2 PHY that is designed to work with both 100/1000Base-T1 speeds.

Application

• Works with Intrepid Controls SFP capable hardware
• Works with Marvell EVB boards and many test tools and commercial ethernet devices
• Well suited for conformance and performance applications
• Register level access and control for real-time monitoring, diagnostics and reconfiguration

Features

• Supports IEEE 802.3bw and IEEE 802.3bp standards
• Supports IEEE 1000BASE-T1 gigabit single pair ethernet with transmission lengths of 15m through 4 in-line connectors
• User selectable modes: master, slave, and auto negotiate modes, default is auto negotiate.
• LEDs indicating link status, activity, and speed
• Metal lock and latch system for reliable connection
• Fully metallic enclosure and stainless steel connector shielding for Low EMI
• Interface via H-MTD SPE connector
• Built-in ESD protection
• Overall dimensions: 76.5 mm length x 13.5 mm width x 20.5 mm height
• Industrial Temperature Range: -40 to 85°C (-40 to 185°F)
• Weight: approximately 30 g
