RAD-Star OBD-II Flashing/Power Cable (DB-25F to OBD-II + DB-9F)

Product CodeRSTAR-FP-CABLE

Converts the DB-25M connector on Intrepid hardware devices to OBD-II and DB-9 connectors, and allows a RAD-Star device to be powered from the OBD-II connector and its firmware updated over the DB-9 connector using Vehicle Spy.

At a glance

CompatibilityConverts the DB-25M connector on Intrepid hardware devices to OBD-II and DB-9 connectors, and allows a RAD-Star device to be powered from the OBD-II connector and its firmware updated over the DB-9 connector using Vehicle Spy
Key interfacesSee Specifications tab
Included itemsNo bundled accessory list provided
Lead timeContact sales for current lead time
Country of originCN

Overview

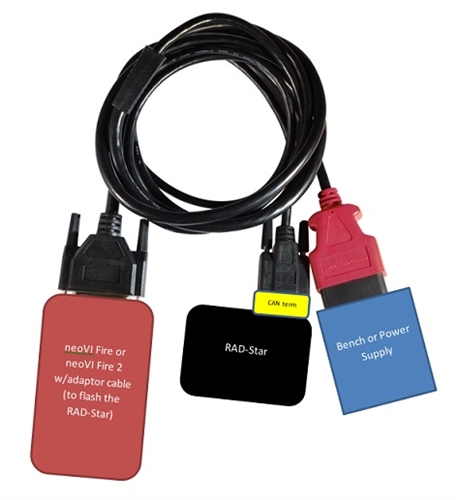

This cable is a modified version of the neoVI-OBD-CAN-1 cable, which converts the DB-25M connector on Intrepid hardware devices to OBD-II and DB-9 connectors. The RAD-Star OBD-II Flashing/Power Cable includes CAN termination on the DB-9 connector to permit flashing the firmware on a connected RAD-Star (see main diagram above).

Details

Since the RAD-Star's DB-9 connection provides power to the device, this cable must be used with a powered OBD-II port (including power and ground lines) for the RAD-Star to function.

Once properly connected, you can flash the RAD-Star's firmware in Vehicle Spy by following these steps:

Open the CoreMini Console.
Click the neoECU (CAN) tab.
Select the HSCAN3 network in the dropdown box (see yellow highlighting in diagram below).
Click the Poll for neoECUs button. Your RAD-Star should appear in the white box to the left.
Select the RAD-Star and click the Flash Firmware button.

More details about updating the RAD-Star can be found in the RAD-Star User's Guide.

Connector Pinouts and Signal Mapping

OBD-II Pin #	OBD-II Signal	DB-25F Signal	DB-25F Pin #	DB-9F Signal	DB-9F Pin #
1	Discretionary* (GMLAN SW CAN)	SW CAN	1
2	SAE J1850 +	J1850 VPW	2
3	Discretionary* (GMLAN MS CAN H)	MS CAN H	5
4	Chassis Ground	N/C	N/C
5	Signal Ground	PWR GND	13	PWR GND	3
6	Discretionary* (GMLAN HS CAN H)	HS CAN 1 H	14
7	ISO9141/K	ISO9141/K/LIN1	8
8	Discretionary*	N/C	N/C
9	Discretionary* (GM ALDL)	HS CAN 3 H	19
10	SAE J1850 -	HS CAN 3 L	20
11	Discretionary* (GMLAN MS CAN L)	MS CAN L	6
12	Discretionary*	HS CAN 2 H	16
13	Discretionary*	HS CAN 2 L	17
14	Discretionary* (GMLAN HS CAN L)	HS CAN 1 L	15
15	L line of ISO 9141-2	ISO L	7
16	Unswitched Vehicle Battery Positive	VBATT	25	VBATT	9
		MISC DIO 1	10	MISC DIO 1	1
		HS CAN 3 L	20	HS CAN 3 L	2
		TSYNC CLK L	22	TSYNC CLK L	4
		MISC DIO 3	23	MISC DIO 3	6
		HS CAN 3 H	19	HS CAN 3 H	7
		TSYNC CLK H	21	TSYNC CLK H	8

Length	6' 5" (1.93 m)
Weight	14.375 oz (409 g)

No Manuals Provided

Harmonized Code	8544429090
ECCN	EAR99
Unit of Measure	Each
Country of Origin	CN
