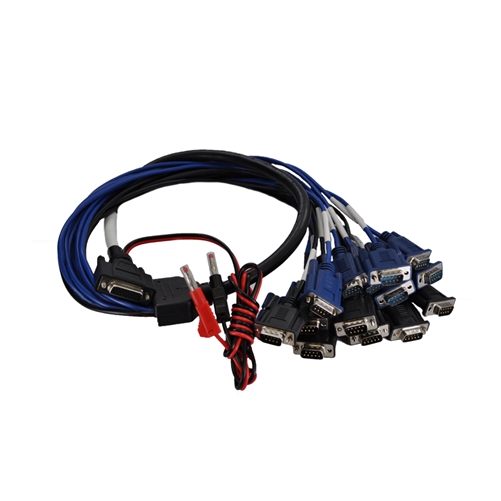

RAD-Galaxy DB-26HD Female Breakout Cable (DB-26HD Female to 14x DB-9M + 2x Banana Plugs)
Product notes
Breaks out the HD-26F connector on the RAD-Galaxy to individual DB-9M connectors CAN, LIN and miscellaneous I/O, and two banana plugs for power.
At a glance
- CompatibilityBreaks out the HD-26F connector on the RAD-Galaxy to individual DB-9M connectors CAN, LIN and miscellaneous I/O, and two banana plugs for power
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeContact sales for current lead time
- Country of originCN
Overview
This cable breaks out the DB-26HD Female connector on the RAD-Galaxy to individual DB-9M connectors for multiple CAN and LIN channels, plus an additional DB-9M for miscellaneous I/O and two banana plugs for power.
Note: This cable does NOT provide HSCAN7 nor AOUT1. If either of these are needed, please contact Intrepid for the correct part number and availability.
Connector Pinouts and Signal Mapping
HSCAN, MSCAN and Switchable SWCAN
| Pin #(DB26PF) | 05 | 15 | 06 | 16 | 07 | 17 | 02 | 12 | 03 | 13 | 08 | 18 | 04 | 14 | 01 | 11 |
| Signal (DB 9M) | HSCAN1 | MSCAN | HSCAN2 | HSCAN3 | HSCAN4 | HSCAN5 | HSCAN6/ SWCAN2 | HSCAN7/ SWCAN1 | ||||||||
| CAN Low | 2 | |||||||||||||||
| CAN High | 7 | |||||||||||||||
| GND/PWR | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||
LIN and AO
| Pin # (DB26PF) | 22 | 09 | 20 | 21 |
| Signal (DB 9M) | LIN1 | A01 | ||
| 2 | 2 | 2 | 2 | |
| GND/PWR | 3 | 3 | 3 | 3 |
PWMIO/AIN
| Pin # (DB26PF) | 23 | 24 | 25 | 26 |
| Signal (DB 9M) | AIN 1 | |||
| 2 | 2 | 2 | 2 | |
| GND/PWR | 3 | 3 | 3 | 3 |
Banana Jacks
| Pin #(HD26F) | 19 | 10 |
| Plugs | PWR+ | GND- |
No Specification Provided
No Manuals Provided
| Harmonized Code | 8544110030 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | Each |
| Country of Origin | CN |
