Network Interface for ADI Wireless Battery Management System (ADI wBMS) "E" Version
- Requires Vehicle Spy Professional Version for wBMS data view.
- API-only use with WIL does not require Vehicle Spy license
Network Interface for ADI Wireless Battery Management System (ADI wBMS) (NOTE - ADI approval required for purchase.) "E" Version.
At a glance
- CompatibilityNetwork Interface for ADI Wireless Battery Management System (ADI wBMS) (NOTE - ADI approval required for purchase
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 1 to 2 Business Days
- Country of originUS
NOTE: Purchase of this product is subject to approval by Analog Devices, Inc., and an NDA may be required with Intrepid Control Systems.
This is the "E" version and it is NOT compatible with "P" version systems! Make sure you specify the correct version at time of order.

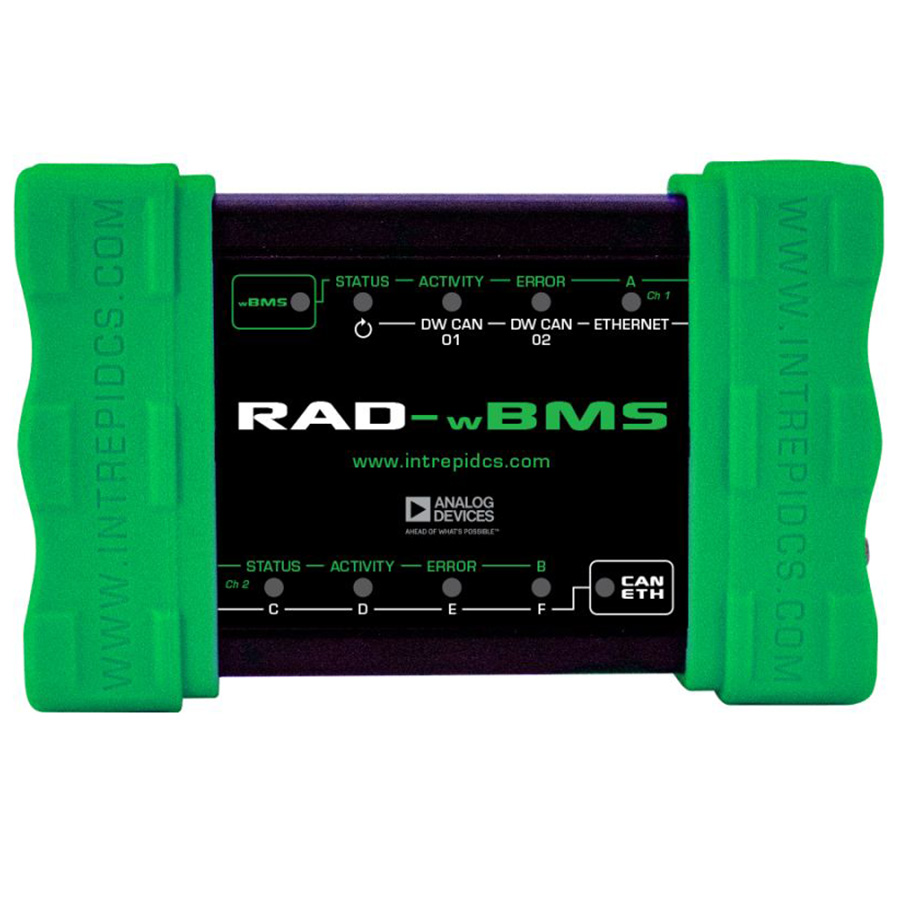

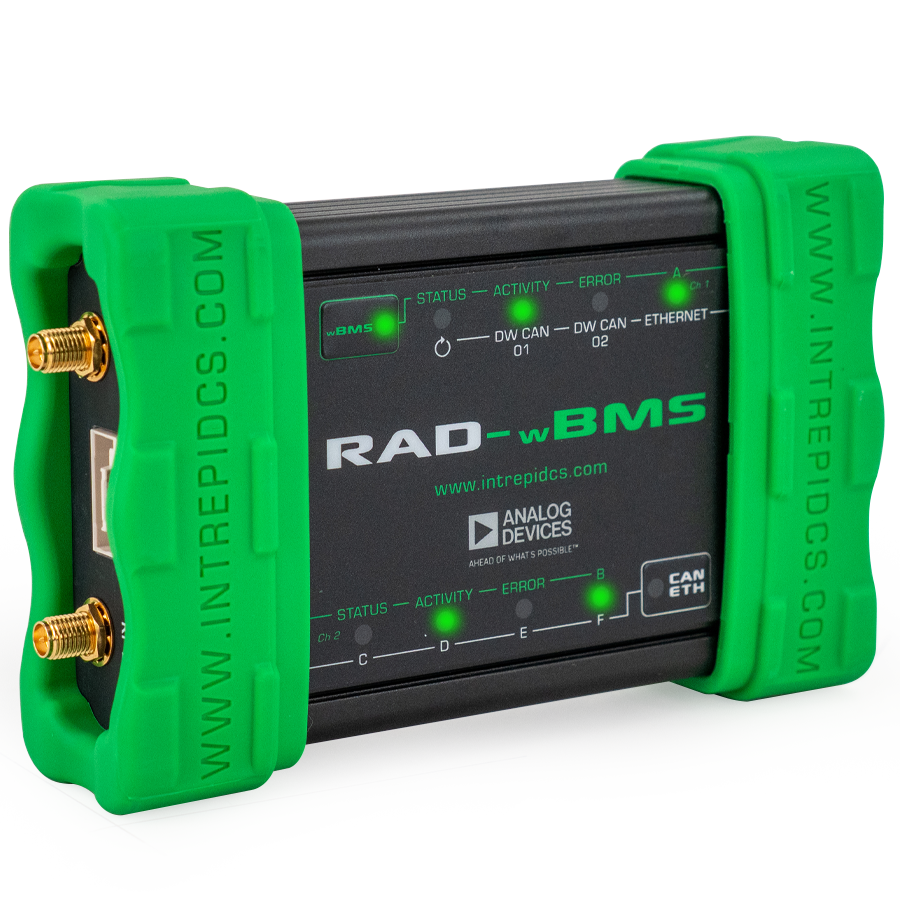

The RAD-wBMS is a battery cell measurement and network testing interface using the wBMS (Wireless Battery Management System®) technology.
Intrepid has partnered with Analog Devices to create a state of the art battery cell measurement and network testing hardware using the wBMS (Wireless Battery Management System®) technology. The RAD-wBMS is an adaptor designed to interface between ADI’s electric vehicle wBMS and legacy test platforms in a variety of use cases. It contains ADI wBMS radios and isoSPI interfaces with which to control and configure the wireless network components along with DW CAN-FD, 100Base-T and USB interfaces with which to connect to legacy test platforms.
The RAD-wBMS comes pre installed with ADI’s wireless interface API (WIL) allowing easy control of the ADI wBMS network. RAD-wBMS combines Analog Devices’ wBMS technology to deliver a complete solution for monitoring critical parameters of battery systems in real time using Vehicle Spy 3 software. Parameters monitored include cell voltage, cell current, ambient temperature, cell/unit voltage, impedance, and temperature. The RAD-wBMS is compatible with many battery chemistries such as VLA, VRLA, and Li-Ion battery types.
Applications
- Engineering development of wireless network components
- Engineering development of wireless battery modules and packs
- Manufacture and assembly of wireless battery modules and packs
- Inventory management of wireless battery modules and packs
- Vehicle assembly for wireless battery pack configuration
- Vehicle servicing for wireless battery module and pack configuration
Features
- Wirelessly monitor up to 24 wBMS nodes (12 cells/node) in dual

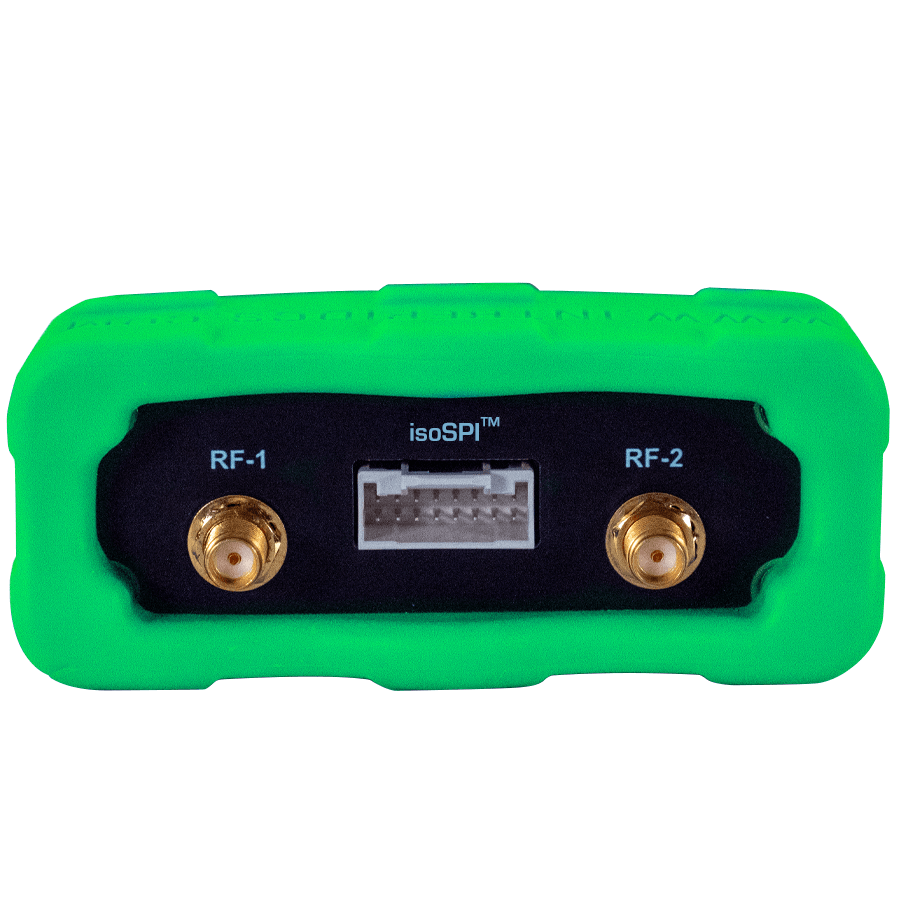

manager configuration - 2x isoSPI interfaces
- 2x DW CAN-FD channels
- 2x software enabled CAN terminations

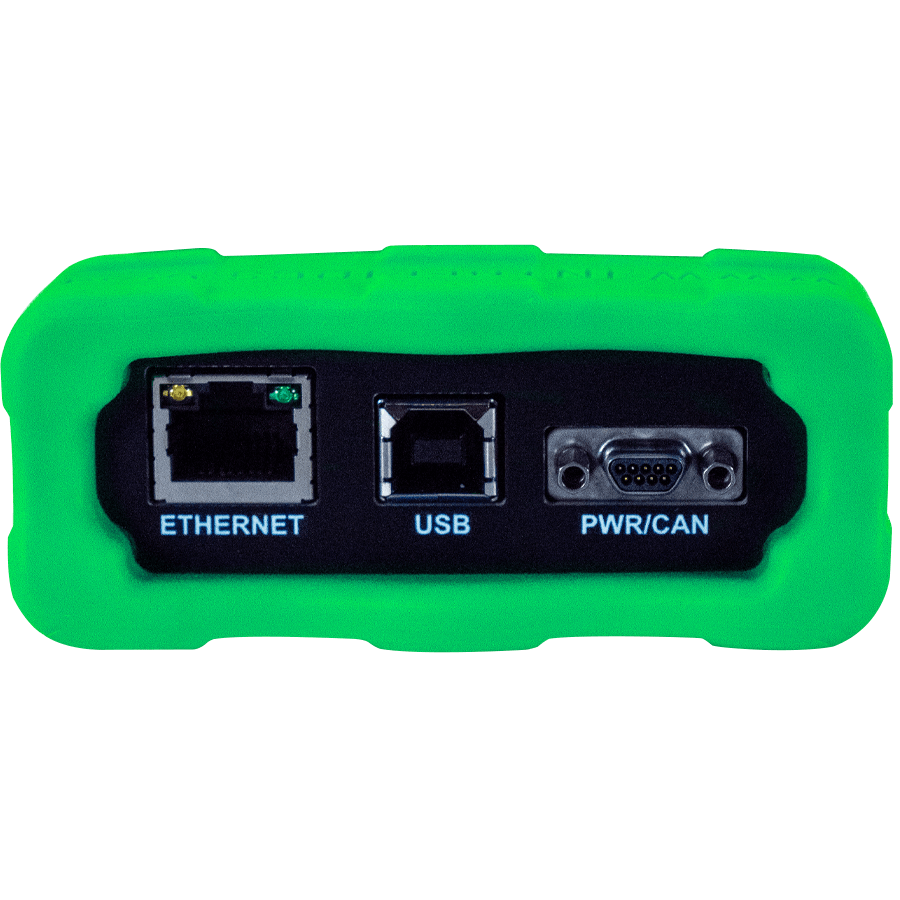

- 1x 100 Megabit Ethernet (10/100BASE-TX) for use with DoIP, XCPoE
and more - 10x Programmable tri-color LEDs
- Membrane LEDs to show link, error, and activity status
Pinout
| isoSPITM | |
| 1 | NC |
| 2 | NC |
| 3 | NC |
| 4 | isoSPITM 02 H |
| 5 | NC |
| 6 | isoSPITM 02 L |
| 7 | NC |
| 8 | NC |
| 9 | NC |
| 10 | NC |
| 11 | NC |
| 12 | isoSPITM 01 H |
| 13 | NC |
| 14 | isoSPITM 01 L |
| 15 | NC |
| 16 | NC |
| DB9 | |
| 1 | NC |
| 2 | DWCAN 01 L |
| 3 | DNC |
| 4 | DW CAN 02 L |
| 5 | CHASSIS GND |
| 6 | GND |
| 7 | DWCAN 01 H |
| 8 | DWCAN 02 H |
| 9 | VBATT |
| Power supply | 6-40V operation via micro DB9 (for vehicle power), or included USB cable |
|---|---|
| Dimensions | 5.41” × 3.43” × 1.43” (13.7 × 8.72 × 3.62 cm) |
| Weight | 0.65 lb (295 g) |
| 2x CAN / CAN FD channels | two dedicated ISO11898 Dual Wire CAN physical layers (ADM3056EBRIZ) |
| Harmonized Code | 9031808070 |
|---|---|
| ECCN | 5A991b |
| Unit of Measure | EA |
| Country of Origin | US |
US/CAN: FCC Part 15 Subpart B; Canada ICES Compliance (CAN ICES-003(A)/NMB-003(A)); Class A ITE Device
RoHS: EU Directive 2011/65/EU; EU Directive 2015/863/EU
