RAD-Moon 3 MultiGigabit Media Converter (2.5/5/10GBASE-T1, TC10, MACsec)

2.5/5/10GBASE-T1 MultiGigabit Media Converter for Automotive Ethernet

Intrepid’s MultiGigabit Media Converter RAD-Moon 3 is the latest Ethernet Media Converter for 2.5/5/10GBASE-T1 MultiGigabit Automotive Ethernet applications. The RAD-Moon 3 converts the Ethernet physical layer from MultiGBASE-T1 to MultiGBASE-T. This is needed to directly connect a PC equipped with the standard 8-wire Ethernet to an automo tiveECU or Switch which use the 2-wire version of Ethernet specific to In-Vehicle Networks. (IVNs)

Key Features

• 2.5/5/10GBASE-T1 physical layer using the Marvell MV-Q3244 PHY
• Compliant with OPEN Alliance’s TC10 Automotive Ethernet Sleep/Wake-up requirements
• Designed for use with the MACsec Automotive Profile of OPEN Alliance’s TC17
• Intuitive LED indicators
  • PHY configuration, link status, and
    network activity
  • Bar graph display of MultiGBASE-T1 Signal Quality Indicator (SQI) in real-time
• Membrane buttons allowing device configuration without software
  • Switch between 2.5G, 5G, and 10G link speeds
  • Select the MultiGBASE-T1 PHY clock configuration
• Uses the H-MTD connection system designed for MultiGBASE-T1
• 6-40V power range, compatible with in-vehicle power from barrel jack.
• Ruggedized USB Type-C connector for device configuration and firmware updates
• PHY register access over USB using Vehicle Spy or Intrepid’s Open Source API allowing PHY status and configuration, as well as TC10 and MACsec related operations

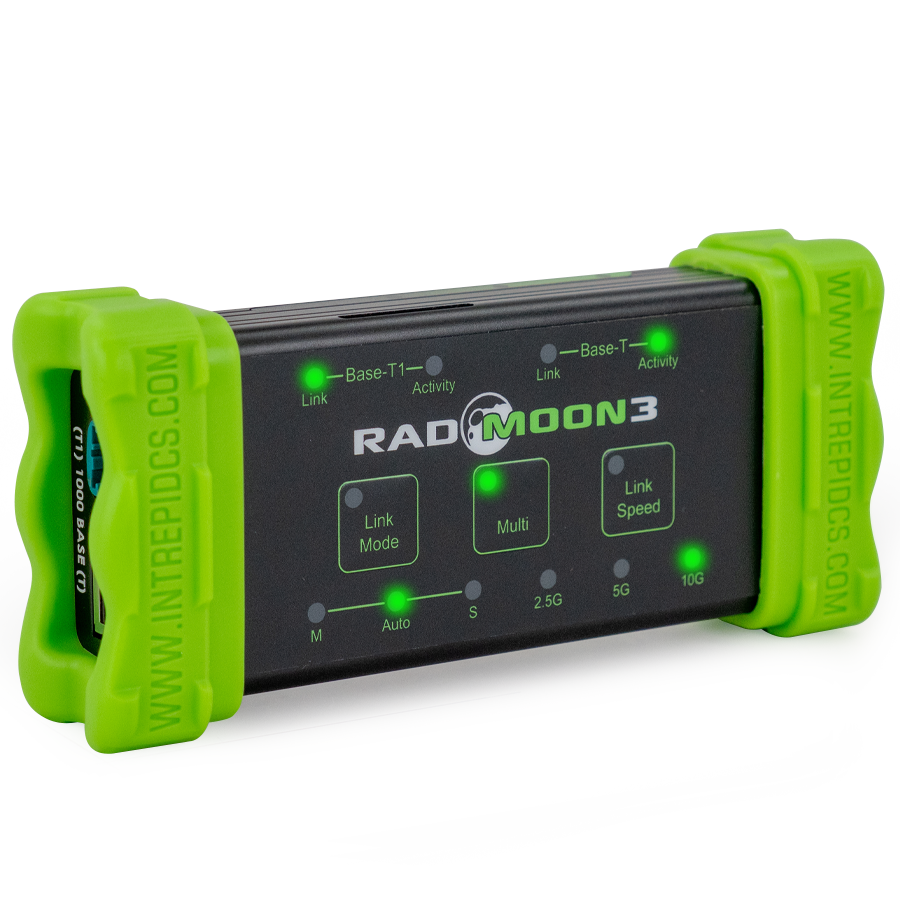

The RAD-Moon 3 provides a small but rugged enclosure perfect for carrying in your laptop bag.

Using the RAD-Moon 3 as a 2.5GBASE-T1 to 2.5GBASE-T converter or 5GBASE-T1 to 5GBASE-T converter or 10GBASE-T1 to 10GBASE-T converter.

Connecting a PC directly to an automotive ECU using the RAD-Moon 3 is useful for simulating other vehicle nodes, performing direct diagnostics, or ECU reflashing.

The registers of the MultiGBASE-T1 PHY can be accessed for direct control and monitoring of its operation, as well as enable test and diagnostic modes.*
