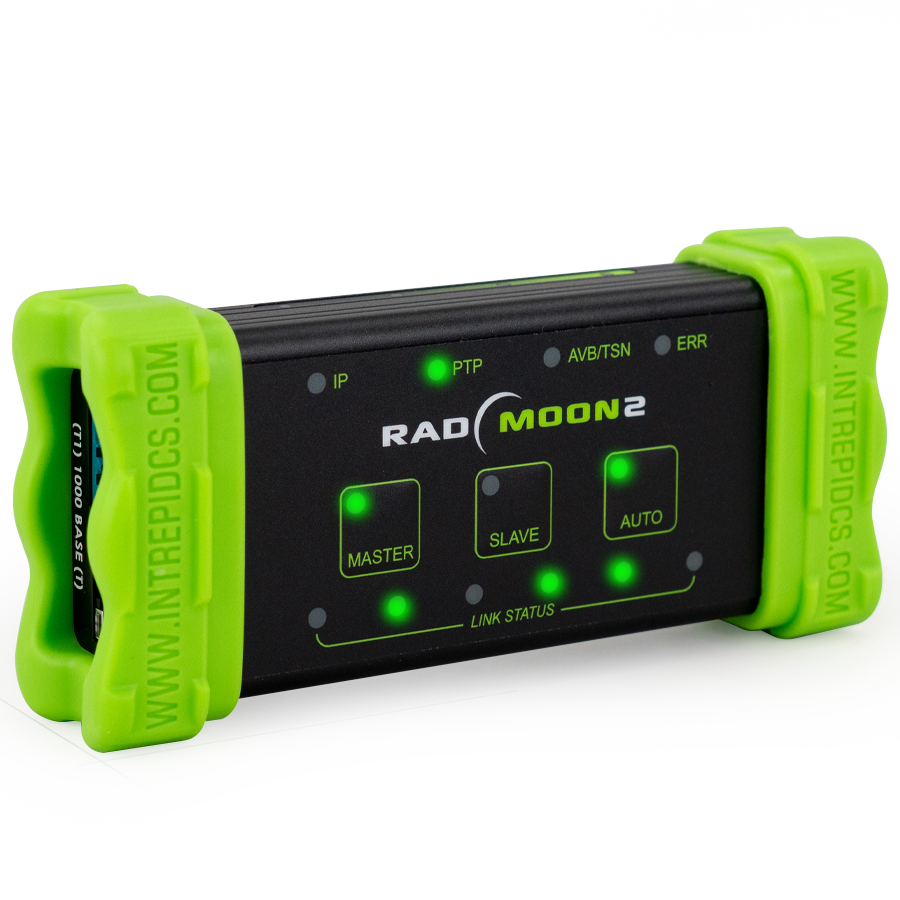

RAD-Moon 2 Media Converter for 100/1000BASE-T1 (MATEnet connector)
Media Converter for 100/1000BASE-T1 with MATEnet connector
At a glance
- CompatibilityMedia Converter for 100/1000BASE-T1 with MATEnet connector
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeContact sales for current lead time
- Country of originUS
This product comes with MATEnet Connector. We also offer RAD-Moon 2 with Rosenberger H-MTD connector with TC10 and MACsec support at https://store.intrepidcs.com/product/rad-moon2-2220m
Media Converter for 100/1000BASE-T1
Intrepid’s RAD-Moon 2 is the most advanced Ethernet media converter for Automotive Ethernet applications. Using the RAD-Moon 2, you can convert from 100BASE-T1 Ethernet to 100BASE-TX or 1000BASE-T1 to 1000BASE-T. This is useful for connecting a PC to a 100/1000BASE-T1 host or switch.
The RAD-Moon 2 is housed within a small but rugged enclosure perfect for carrying in your laptop bag.
Media Converter Mode
The RAD-Moon 2 can act as a media converter, allowing a PC to interact with 100/1000BASE-T1* ECUs. This allows you to simulate nodes or perform direct diagnostics or ECU flashing.
* Can also be used with BroadR-Reach®
Features
- 100/1000BASE-T1 via Marvell 88Q2112 PHY
- Programmable membrane label with LEDs to show PHY and network status
- Membrane switches allow switching between 100BASE-T1 and 1000BASE-T1, and selecting master, slave or automatic PHY configuration
- Uses the TE MATEnet connector specially designed for 1000BASE-T1
- View network activity on a bar graph
- 4.5-40V power range, compatible with in-vehicle power
- Ruggedized USB Type-C connector for power and configuration
| Power Supply | 4.5-40 Volt Operation |
|---|---|
| Firmware | Field upgradeable design (flash firmware) |
| Housing materials | anodized aluminum and rubber |
| Operating temperature range | -40°C to 85°C |
| Warranty | One-Year Limited Warranty |
| Dimensions | 5.414″ x 2.489″ x 1.266″ (137.53mm x 63.22mm x 32.15mm) |
| Lightweight | less than 1 lb. (.45 kg). |
| Harmonized Code | 9031808070 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | Each |
| Country of Origin | US |
Certifications:
EU EMC: EMC Directive 2014/30/EC (Articles 13 & 14); EN 61326-1:2013
US/CAN: CFR Title 47, SubPart B 15.109; ISED ICES-003; ANSI C63.4:2014; ICES-003 Issue 6 (2016)
RoHS: EU Directive 2011/65/EU; EU Directive 2015/863/EU
