10BASE-T1S Media Converter Interface
10BASE-T1S Media Converter and Network Tool
At a glance
- Compatibility10BASE-T1S Media Converter and Network Tool
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 6 to 8 Weeks
- Country of originUS
The Intrepid RAD-Moon family of Media Converters has a new member supporting the latest Automotive Ethernet technology 10BASE-T1S is a low-cost, low-speed, multidrop version of Automotive Ethernet widely considered for the replacement of CAN/FD. Its material costs are approaching that of CAN/FD, but it also eliminates the need for gateways by natively supporting Ethernet protocols such as TCP/IP, UDP, and gPTP.
Primary Use Cases
- Media Converter between 10BASE-T1S and 10/100/1000BASE-T
- 10BASE-T1S Network Interface
- Network Monitoring and Diagnostics
- ECU Simulating

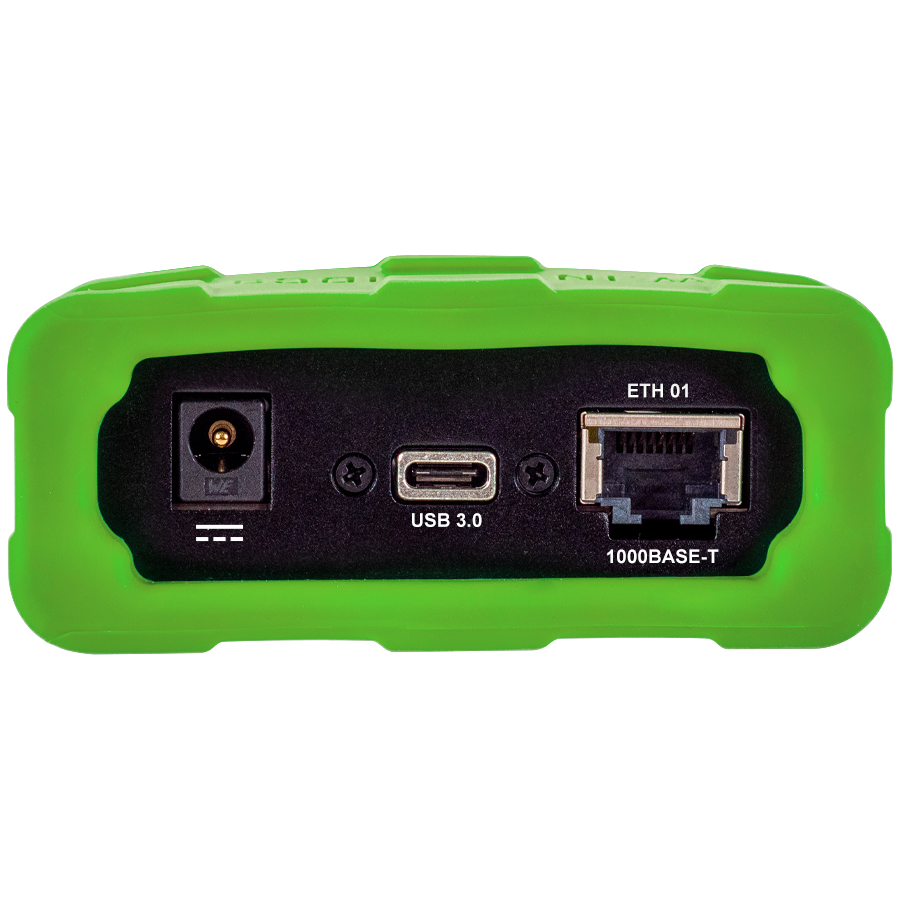

Product Features

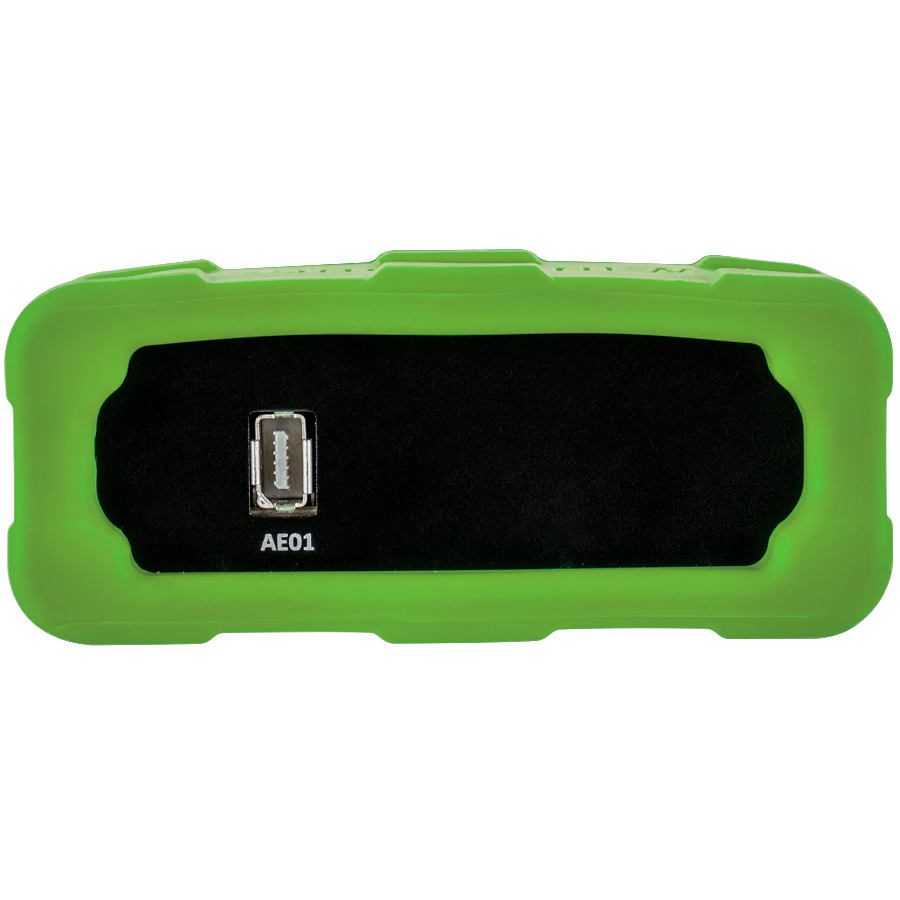

- Network Interfaces
- 1x 10BASE-T1S (AD330X)
- 1x 10/100/1000BASE-T
- gPTP Time Synchronization on 10BASE-T1S
- OPEN Alliance TC14/TC10 Sleep and Wakeup

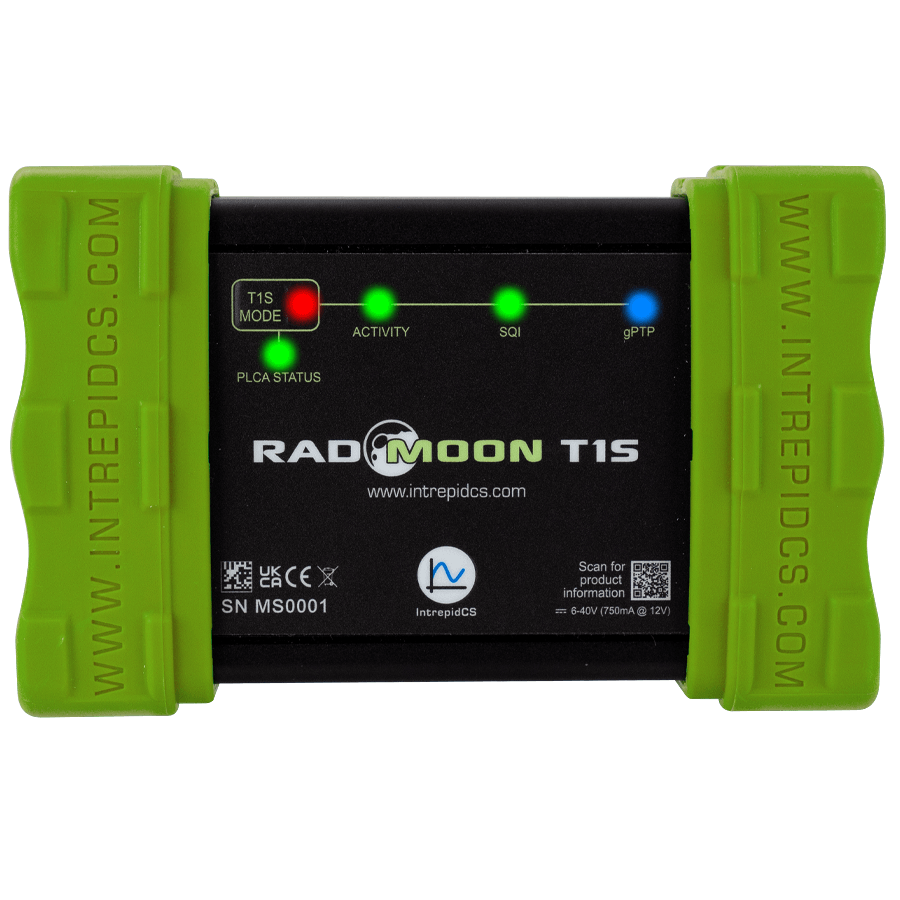

- T1S Status LEDs
- RX/TX Activity
- SQI indication
- PLCA Status
- gPTP Status
- PC Connectivity
- Data connection via USB 3
- Compatibility with Vehicle Spy and Wireshark
- Open-Source Intrepid API
- Direct network access in Windows or Linux applications
- 10BASE-T1S MACPHY Register Access
- TC14/TC10 Sleep and Wakeup

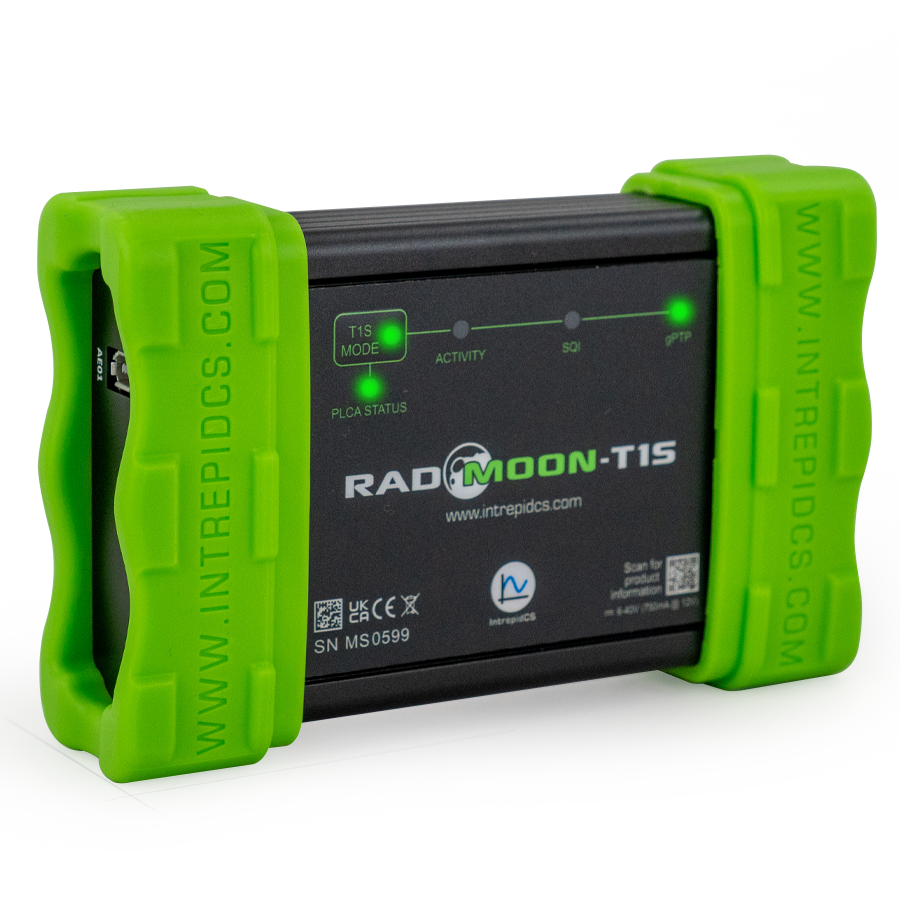

10BASE-T1S Media Converter
The RAD-Moon T1S is a media converter for developing and testing 10BASE-T1S communication in automotive systems. It bridges a single twisted pair of a 10BASE-T1S multidrop network to the standard 10/100/1000BASE-T Ethernet port of a laptop for observing network activity using Wireshark or Vehicle Spy. It can also be used to bridge 10BASE-T1S networks to testing and simulation devices that do not have native 10BASE-T1S ports.
10BASE-T1S Network Interface
The RAD-Moon T1S can also be used as a 10BASE-T1S network interface when connected to a host computer using Vehicle Spy software or Intrepid’s APIs. In this mode, the host computer can receive timestamped Ethernet traffic from both ports, as well as transmit Ethernet frames via either port.
Standalone Embedded Script Execution
In addition to working as a PC interface, the RAD-Moon T1S can operate in a standalone mode running real-time scripts for ECU simulation.
| Temperature Range | -40°C to +85°C |
|---|---|
| Compact design | 5.35” x 3.46” x 1.46” (13.6 x 8.8 x 3.7cm) |
| Light weight | less than 1 lb. (.45 kg) |
| Harmonized Code | 9031808070 |
|---|---|
| ECCN | 5A991b |
| Unit of Measure | Each |
| Country of Origin | US |
EU EMC: EMC Directive 2014/30/EC (Articles 13 & 14)
US/CAN: FCC Part 15 Subpart B; Canada ICES Compliance (CAN ICES-003(A)/NMB-003(A)); Class A ITE Device; CFR Title 47, SubPart B 15.109; ISED ICES-003
RoHS: EU Directive2011/65/EU; EU Directive 2015/863/EU
