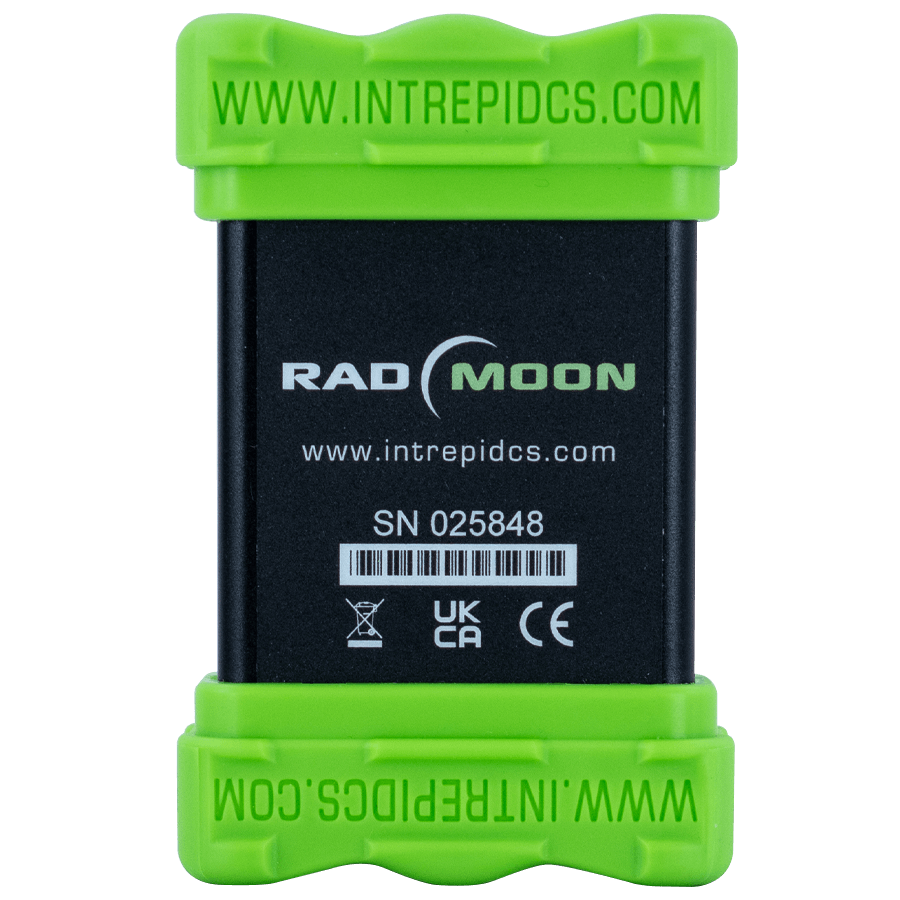

RAD-Moon - 100BASE-T1 Automotive Media Converter
The RAD-Moon is a 100BASE-T1 media converter for connecting one port of Broadcom's BroadR-Reach® physical layer to one port of a 4-wire 10/100 Ethernet (100BaseTX). The RAD-Moon provides a small but rugged enclosure perfect for carrying in your laptop bag.
At a glance
- CompatibilityThe RAD-Moon is a 100BASE-T1 media converter for connecting one port of Broadcom's BroadR-Reach® physical layer to one port of a 4-wire 10/100 Ethernet (100BaseTX)
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 1 to 2 Business Days
- Country of originUS
100BASE-T1 Ethernet Media Converter (BroadR-Reach Compatible)
Bridge the Gap Between Conventional and Automotive Ethernet
The RAD-Moon is a media converter that allows you to connect a BroadR-Reach® / 100BASE-T1 Automotive Ethernet device to a PC with a conventional 4-wire 10/100 Ethernet port. With its low cost, compact size and high performance, the RAD-Moon is ideal for monitoring, analysis, diagnostics and other applications in an Automotive Ethernet environment.
Simple, Inexpensive, Yet Powerful
The RAD-Moon contains two different Ethernet physical layer implementations (PHYs) that are internally connected: BroadR-Reach® and conventional 10/100 twisted pair Ethernet. Whenever any data is received over either connection, it is automatically sent out on the other, creating a seamless link between the two attached devices. Full-duplex operation is supported, so data can be sent in both directions simultaneously.
Key Features
- Powered by an industry-standard mini-USB connection
- A 100BASE-T1 PHY (NXP) connected directly to a 4-wire 100BASE-TX Ethernet PHY
- Automatic master/slave configuration for the attached Automotive Ethernet device

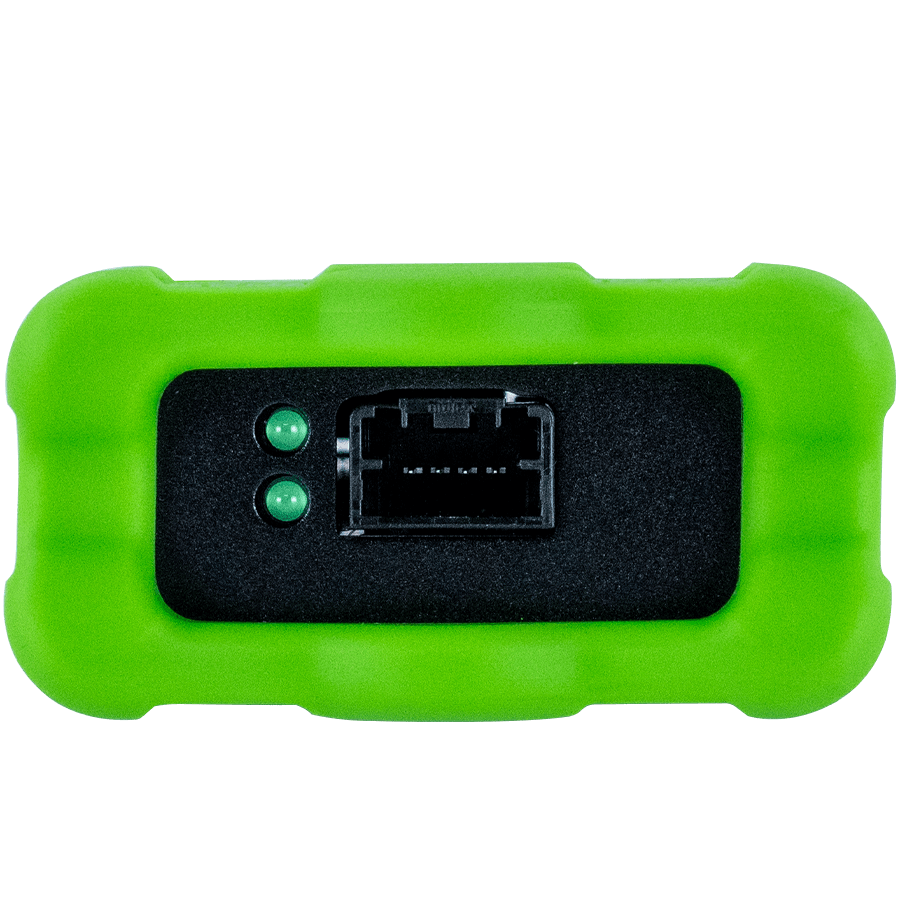

- Molex Mini50 for Automotive Ethernet connection

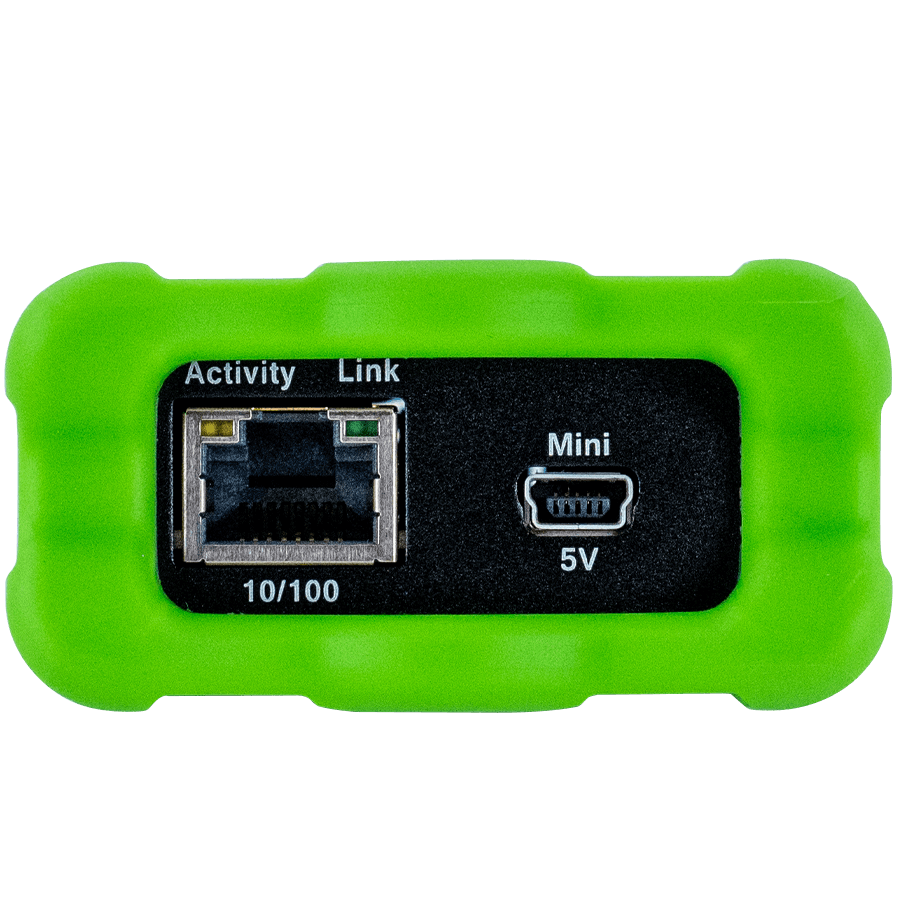

- Standard RJ-45 for 10/100 Ethernet connection with automatic configuration for 100 Mb/s Ethernet networks
- Link and activity LEDs for both connections
- Full-duplex support for simultaneous data transmission and reception across both PHYs
- Rugged aluminum enclosure with rubber bumpers for durability
- Ethernet cable and USB cable included
Pinout
| Pin # | Label | Description |
| 1 | No Connect | |
| 2 | TRD+ | Data transmit and receive, positive |
| 3 | TRD- | Data transmit and receive, negative |
| 4 | No Connect |
| Power draw | 250 mA @ 5V or about 1.25W |
|---|---|
| BroadR-Reach® transmission latency | 240 ns |
| BroadR-Reach® reception latency | 780 ns |
| Conventional Ethernet transmission latency | 60 ns |
| Conventional Ethernet reception latency | 240 ns |
| Housing materials | anodized aluminum and rubber |
| Operating temperature range | -40°C to 85°C |
| Harmonized Code | 9031808070 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | Each |
| Country of Origin | US |
US/CAN: FCC Part 15 Subpart B; Canada ICES Compliance (CAN ICES-003(A)/NMB-003(A)); Class A ITE Device; part 15 of the FCC Rules
RoHS: EU Directive 2011/65/EU; EU Directive 2015/863/EU
