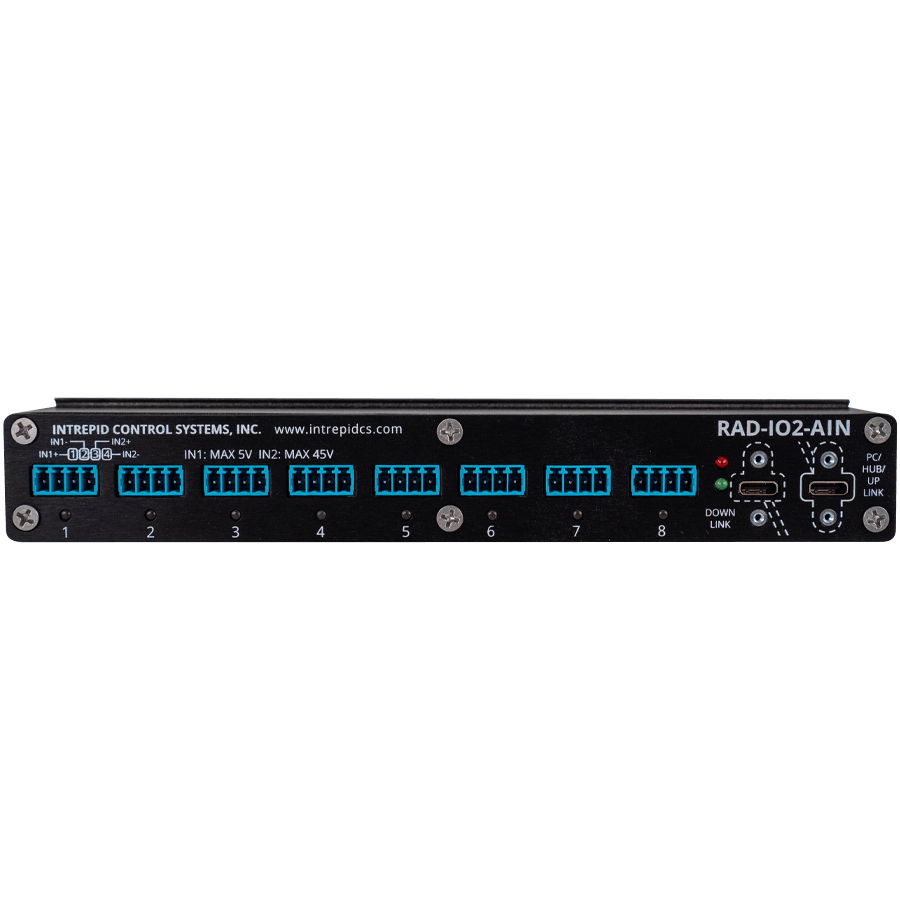

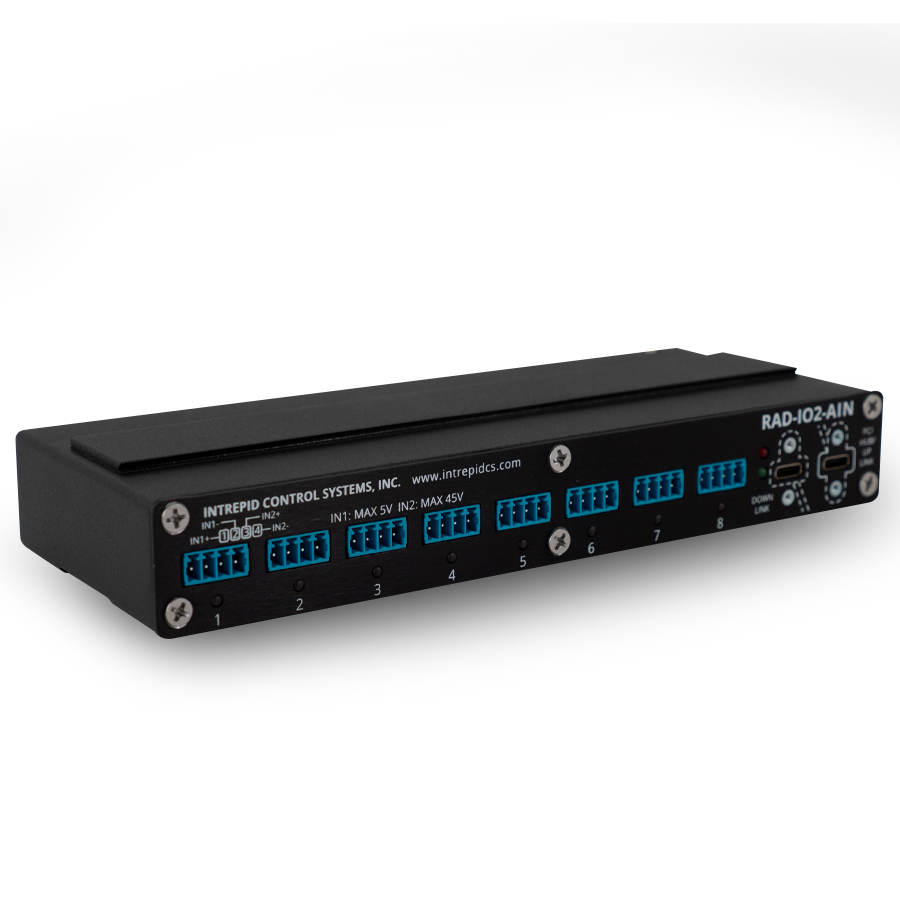

RAD-IO2 Isolated Analog Input Module

RAD-IO2 Isolated Analog Input Module

The RADIO2-AIN Module has:

• 8 Banks of isolated analog inputs
• Each bank has two sets of inputs, low and high voltage; Only one can be accessed at a time as a channel.
• Low range: ±250mV, ±1000mV, and ±5000mV
• High range: ±8V, ±16V, and ±45V
• >800kΩ Input impedance
• 50Hz/60Hz common mode rejection > 105dB
• Second order 150Hz filter

Most DAQ applications tie you to a single tool chain or software. That results in less choice and higher prices. Many of us have often wanted hardware that expands beyond vehicle networks into digital I/O, analog I/O relays and other sensors. The RAD-IO2 Family is what you've been waiting for.

Intrepid's RAD-IO2 devices connect in many ways:

• Using the CANHub, it connects to your CAN or CAN FD vehicle network (or an unused network on any CAN/CAN FD device, such as a neoVI ION, neoVI Plasma, or neoVI Fire 2.)
• Connects directly to USB port on neoVI Fire 2 and neoVI ION
• Connect to Arduino with UART
• USB for direct connection to your computer (Mac, Linux, and Windows)

All RAD-IO2 Modules have the ability to stack, using an integrated "dovetail" notch. Stackable, Daisy-Chain Up To Five Modules with optional CAN-HUB; Two with FIRE2 or ION; PC-USB depends upon power limitation from the PC-USB

Product Family

• RAD-IO2-TC: 8 Isolated banks, each with 1 isolated channel of K-type thermocouple |  Request a Quote for RAD-IO2-TC
• RAD-IO2-DIO: 12 digital/analog inputs and 8 digital outputs | Request a Quote for RAD-IO2-DIO
• RAD-IO2-AOUT: 8 Isolated analog output banks, each with 3 analog outputs per bank  | Request a Quote for RAD-IO2-AOUT
• RAD-IO2-PWRRLY: 8 Isolated SPDT (single pole double throw) electro-mechanical relays | Request a Quote for RAD-IO2-PWRRLY
• RAD-IO2-DIO: 12 digital/analog inputs and 8 digital outputs | Request a Quote for RAD-IO2-DIO
• RAD-IO2-CANHUB: CAN interface for up to 4 RAD-IO2 devices | Request a Quote for RAD-IO2-CANHUB
