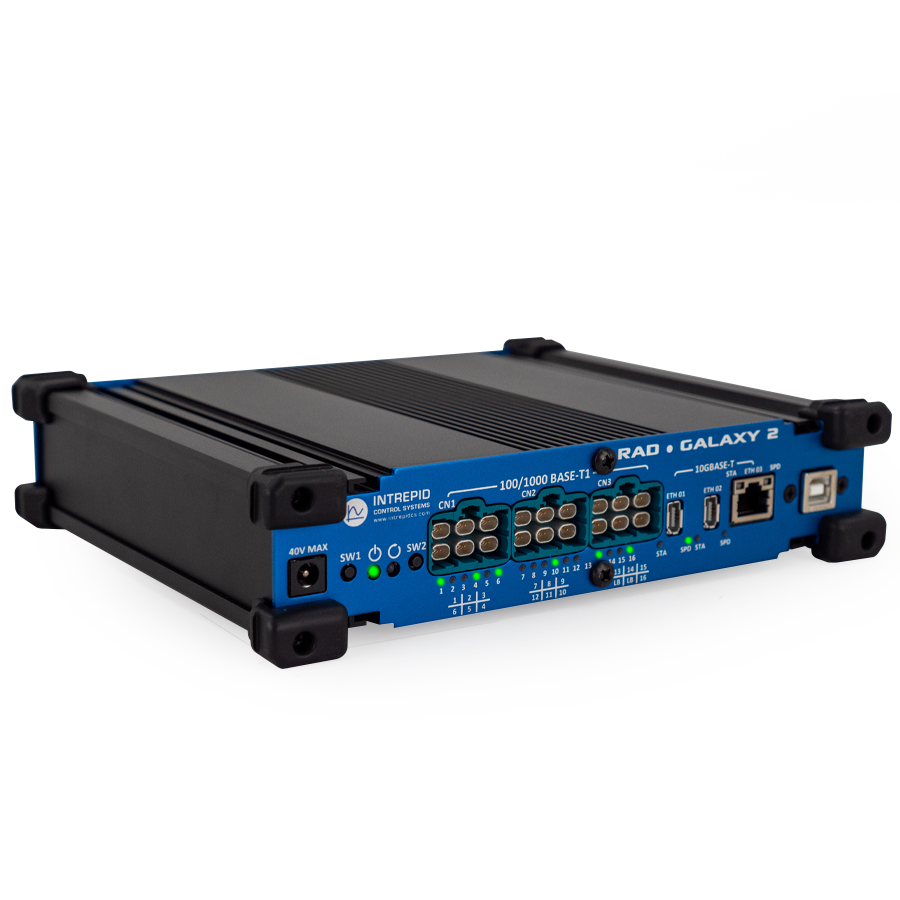

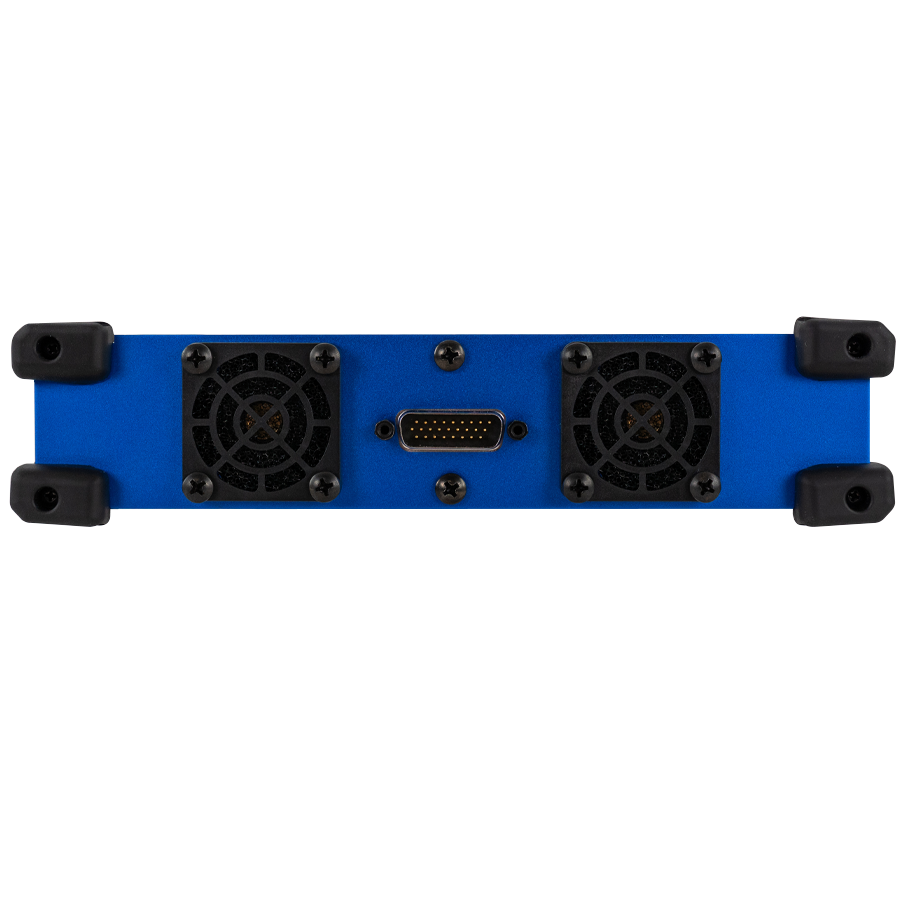

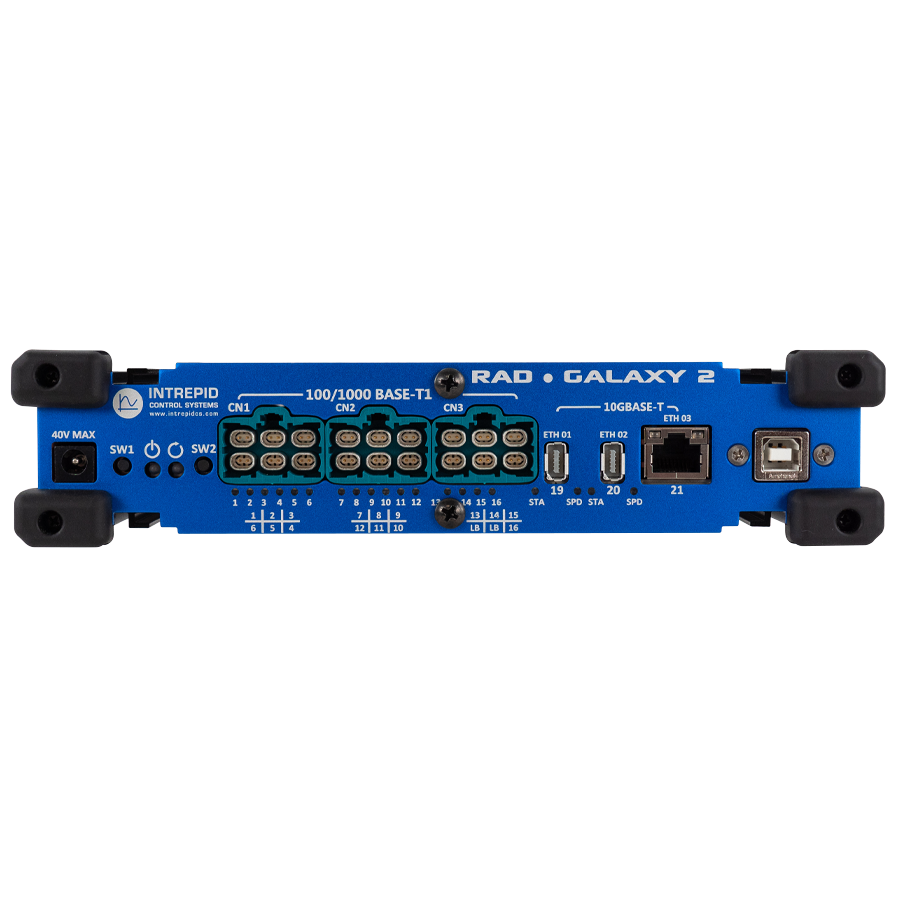

RAD-Galaxy 2 Multi-Tap for 1000BASE-T1 and 10GBASE-T1

Your Go-To Tool for Software Defined Vehicles and Zonal Networks Testing

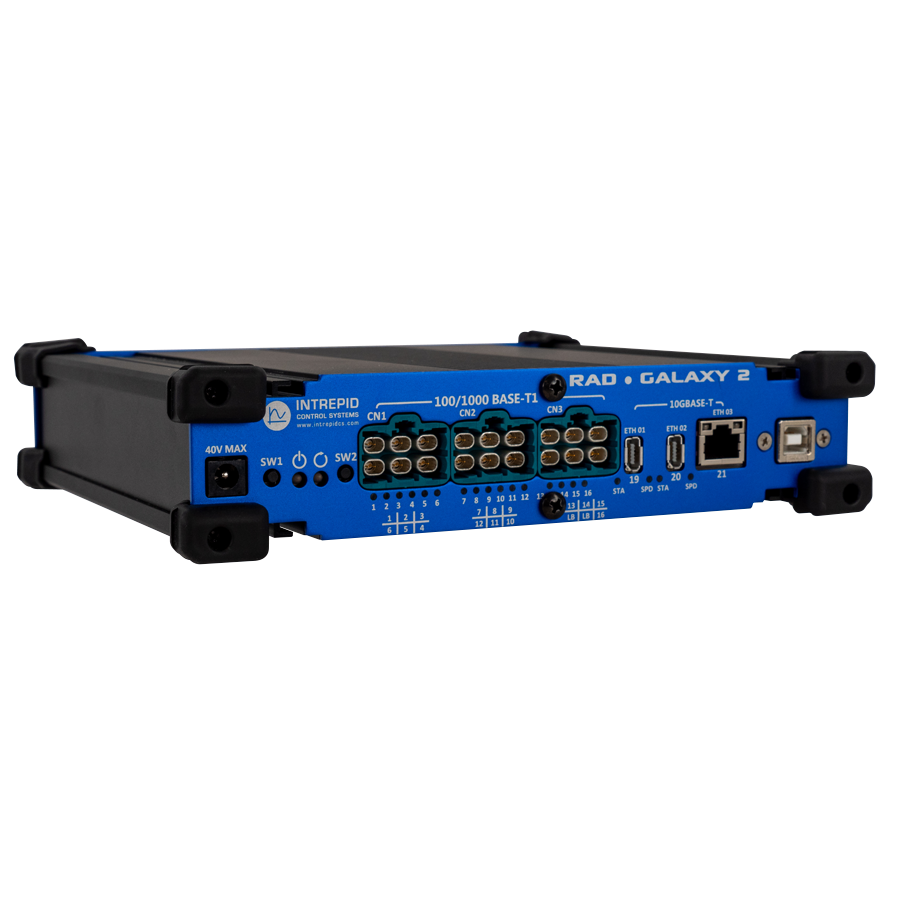

Intrepid’s RAD-Galaxy 2 is a multi-purpose Ethernet Active Tap and Gateway for Automotive Ethernet. It has 12x 100/1000BASE-T1 PHYs, allowing it to tap 6 links between ECUs and/or switch ports for monitoring traffic between devices. The ports can also be used independently to connect up to 16 devices to a PC for simulation, testing, parallel ECU flashing. In addition to its Automotive Ethernet capabilities, it offers 8x CAN FD channels, DoIP/SoAD support and 1x 10GBASE-T port.

Features

• 16x 100/1000BASE-T1 using the Marvell 88Q2221 PHY
  • 8x Active Taps
  • 6-way H-MTD Connector
• 3x 10GBASE-T port
• 8x ISO CAN FD channels with selectable on-board termination
• 2x LIN channels
• 1 DoIP activation line
• 4 GB internal RAM for full speed capture and buffering
• Features per-port TC10 sleep/wake support with signal forwarding capabilities between tap partners
• MACsec Authentication/Encryption Support
• Fully supports Wireshark and Vehicle Spy
• Time synchronization with autonomous logging systems using gPTP
• Isolated ix Industrial™ IP20 connection for PC connection, depending on configuration
• 10-40V power range, compatible with in-vehicle power
• LEDs to show link, error, and activity status
• Automatic power management wake up modes

– BroadR-Reach® devices also supported

Applications

• ECU level and system level automated testing
• Automotive Ethernet Tap
• Parallel reflashing of up to 16x ECUs
• Automotive Ethernet to CAN FD
• SoAd/DoIP/ISO 15765 reflashing over Automotive Ethernet or CAN FD

Active Tap Configuration

One use of the RAD-Galaxy 2 is to act as an active tap with 8x 1000BASE-T1 taps, transparently tapping between devices. These can be any combination of six ECU-to-switch or ECU-to-ECU links.The traffic from each device on a tapped link is forwarded to its partner, ensuring seamless operation of the network. Copies of all messages/streams are also aggregated and sent to the PC over the RAD-Galaxy’s 10G Ethernet link, where they can be analyzed using Vehicle Spy software.

Independent Ports Mode

The Rad-Galaxy 2 can be used to connect up to 16x 100/1000BASE-T devices to a computer. This is helpful for a number of use cases such as simulation, testing, diagnostics, and Parallel ECU flashing. In addition, any of the Ethernet ports can be bridged internally allowing media conversion between BASE-T and BASE-T1 devices.

Central Gateway Testing

The RAD-Galaxy 2 is uniquely configured to test central gateways. Connect to the “clean” and “dirty” side of the central gateway with four Ethernet ports, as well as the 8x CAN FD networks. All data is synchronized with better than 10 ns accuracy.

Automotive Ethernet PHY Testing

RAD-Galaxy 2’s user-friendly and powerful design allows you to validate and debug physical layer/PHY issues. The RAD-Galaxy 2 provides PHY-level information including signal quality measurement, master/slave or negotiation modes, and other status available from the PHY.
