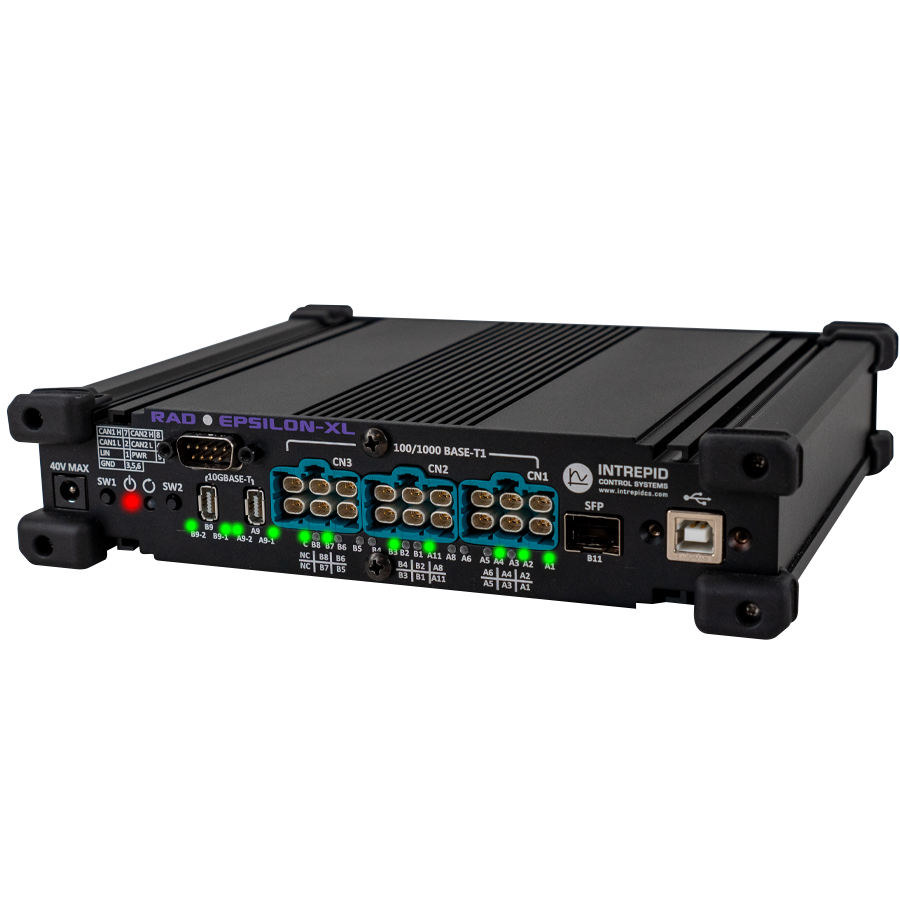

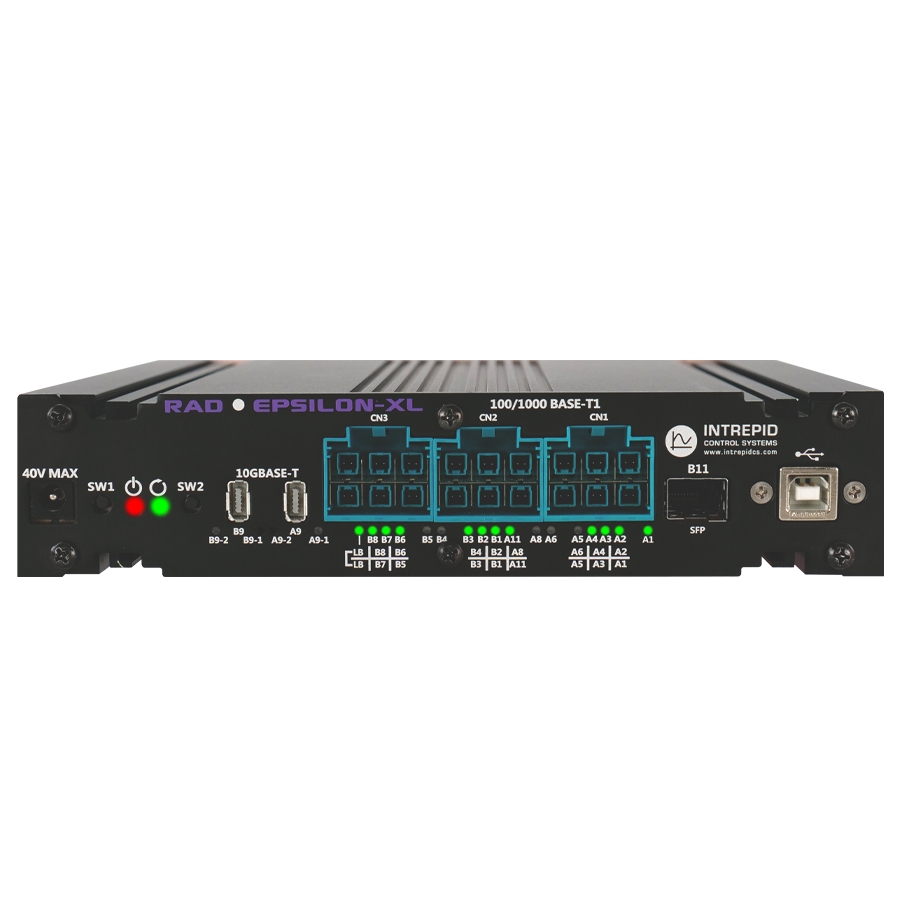

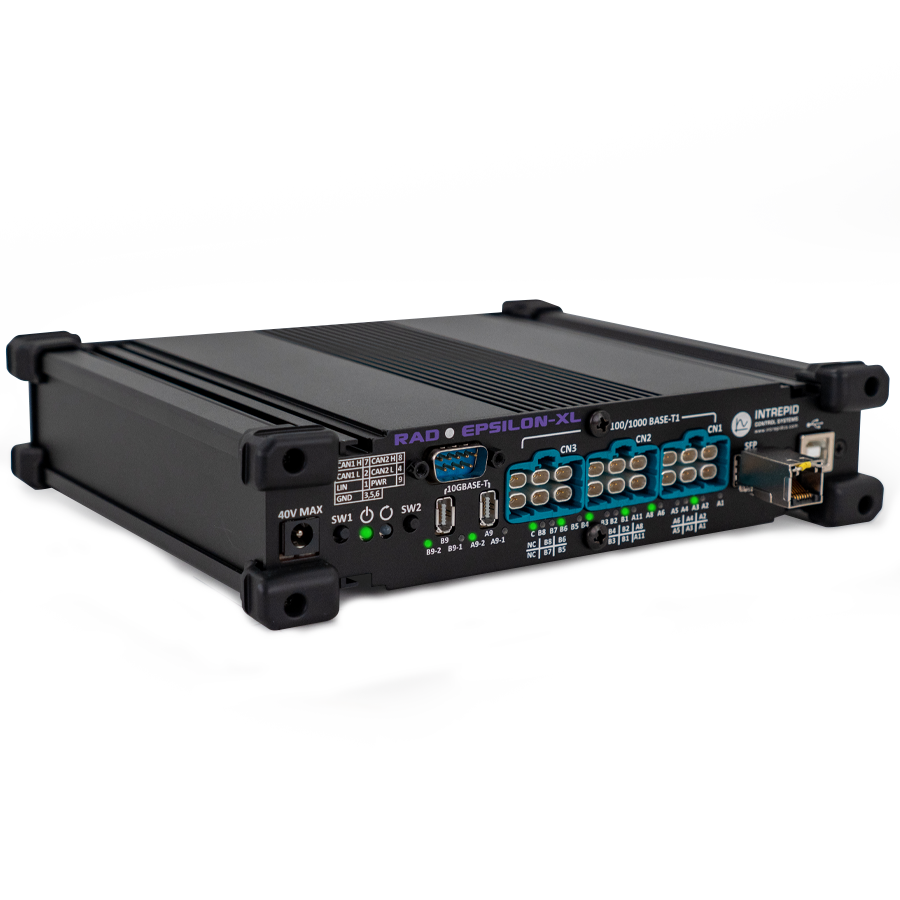

RAD-Epsilon XL - Managed Switch (10G-T, 1G-T1, CAN FD, LIN, USB)
Automotive Ethernet Managed Switch -- 2x 10GBASE-T ports, 16x 100/1000BASE-T1 ports, 1x SFP Cage, 1x USB, 2x CAN FD, 1x LIN.
At a glance
- CompatibilityAutomotive Ethernet Managed Switch -- 2x 10GBASE-T ports, 16x 100/1000BASE-T1 ports, 1x SFP Cage, 1x USB, 2x CAN FD, 1x LIN
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 4 to 6 Weeks
- Country of originUS
Intrepid’s RAD-Epsilon XL is a rugged 19-port Gigabit managed switch designed specifically for bench or in-vehicle development. In addition to offering 6-way H-MTD connection systems for 100/1000BASE-T1, it features one of the latest Automotive Ethernet physical layer transceivers (PHY), the Marvell 88Q222xM. This PHY contains the functionality required for devices to meet the OPEN Alliance TC17 and MACsec Automotive Profile requirements. The PHYs in the RAD-Epsilon XL also comply with the OPEN Alliance TC10 requirements.
Interfaces:
- 16x 100/1000BASE-T1 (88Q222xM) (16x with future software upgrade)
- 2x 10GBASE-T
- 1G SFP cage supporting a variety of physical layers to 1 Gb)
- PHY register access over USB using Vehicle Spy or Intrepid’s Open Source API allowing PHY status and configuration, as well as TC10 and MACsec-related operations
- 2x CAN / CAN FD
- 1x LIN
- Embedded CoreMini processor for scripting and stand-alone gateways
- Ruggedized USB 2.0 connector for configuration, and firmware updates
- LEDs for network status
- Field-upgradeable firmware
- 1U half-rack (9.5”) form factor
Features
- 2x Marvell 88Q6113 Automotive Ethernet Managed Switches
- Embedded AVB/TSN protocol stack
- IEEE 802.1Q tag support with 4096 VLANs
- Port mirroring
- Per-port address whitelisting/blacklisting
- Ingress policing and rate limiting
- Ternary Content Addressable Memory (TCAM)
- AVB/TSN STANDARDS SUPPORTED
- 802.1AS – Generalized Precision Timing Protocol (gPTP)
- 802.1Qav – Forwarding and Queuing for Time-Sensitive Streams (Credit Based Shaping)
- 802.1Qbv – Enhancements for Scheduled Traffic (Time Aware Shaping)
- Static Stream Reservation
Ethernet Interfaces
- 16x 100/1000BASE-T1 (88Q222xM) (16x with future software upgrade)
- 2x 10GBASE-T
- 1G SFP cage supporting a variety of physical layers to 1Gb
- PHY register access over USB using Vehicle Spy or Intrepid’s Open Source API allowing PHY status and configuration, as well as TC10 and MACsec-related operations
- 2x CAN / CAN FD and 1x LIN for legacy network monitoring and simulation
- Embedded processor for scripting and stand-alone gateways
- Ruggedized USB 2.0 connector for configuration, and firmware updates
- LEDs for network status
- Field-upgradeable firmware
- 1U half-rack (9.5”) form factor
| Harmonized Code | 9031808070 |
|---|---|
| ECCN | 5A991b |
| Unit of Measure | Each |
| Country of Origin | US |
