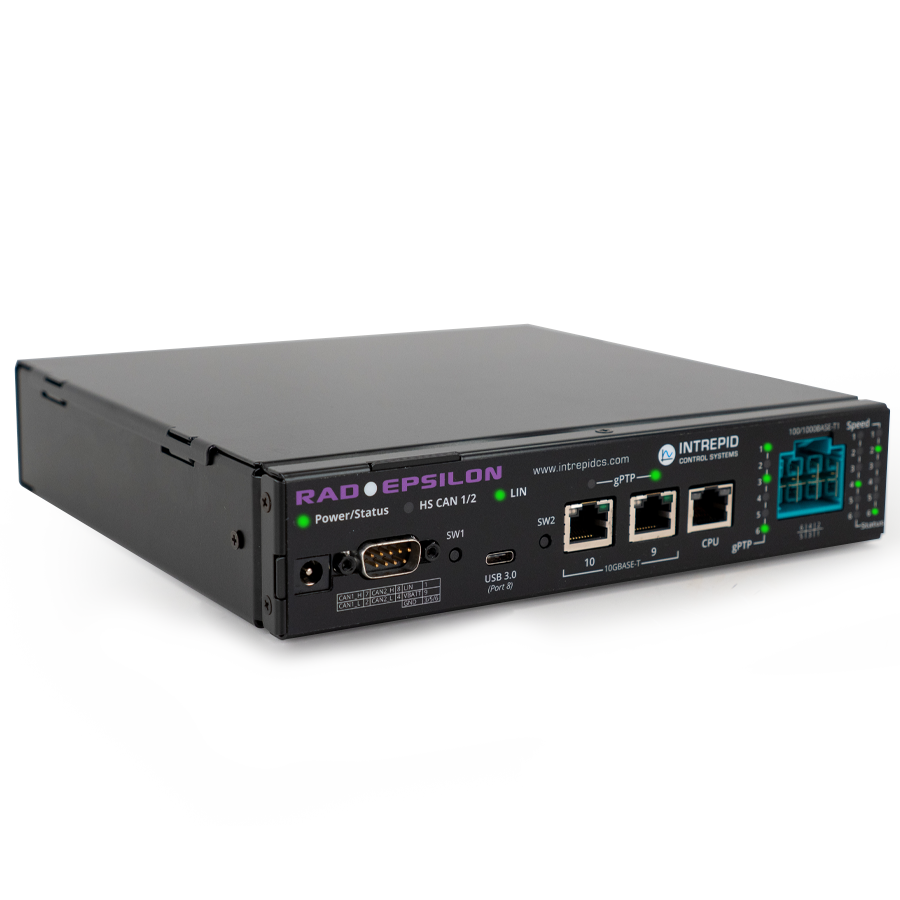

RAD-Epsilon - 9-Port Managed Switch (2x 10G-T, 6x 1G-T1, 1x USB/GigE)

RAD-Epsilon - 9-Port Gigabit Automotive Ethernet Managed Switch

Intrepid’s RAD-Epsilon is a rugged 9-port Gigabit managed switch with Nvidia Jetson Nano Integration designed specifically for bench/vehicle network and Autonomous development. In addition to its Ethernet functionality, it integrates many of the key CAN, LIN, and scripting features found in our vehicle networking tools.

PRODUCT FAMILY FEATURES

• Marvell 88Q6113 Managed Switch designed for Automotive Environment

  • 6x 100/1000BASE-T1 ports

  • 2x 10GBASE-T

  • 1x USB3/GigE bridge

• Embedded AVB/TSN protocol stack

• Embedded processor for scripting and embedded C applications

• Intrepid Security Module supporting cybersecurity applications

• LEDs for network status and device configuration

• 1U half-rack (9.5”) vented case with FANs

• Optional Nvidia Jetson Nano Integration

• Field-upgradeable flash firmware

FEATURES

• 6 100/1000BASE-T1 Ports
• 2 10GBASE-T Ports
• 1 USB/GigE Bridge
• 2 CAN FD Channels w/ programmable termination
• 1 LIN Channel
• Optional Nvidia Jetson Nano Integration
• 1U half-rack (9.5”) vented case with FANs

AVB/TSN Use Cases

• AVB compliant bridge supporting static streams

• AVB/TSN network sensitivity analysis (Insert latency or switch hops; Add additional ECU’s for more BE or stream traffic.)

Media Converter

The BASEs are covered! 10GBASE-T, 100/1000BASE-T1, 100/1000BASE-T, and a USB/GigE Bridge. A media converter is as simple as setting up bidirectional port forwarding between any 2 ports. The RAD-Epsilon can be configured for up to two T/T1 media converters without losing the use of the remaining ports of the switch!

Gateway Applications

In addition to providing a network interface to your PC, the embedded processor in the RAD-Epsilon can be programmed to run real-time applications such as network gateways. Applications can be programmed in Vehicle Spy’s Function Blocks, C Code, or the Gateway Builder GUI, all of which are easily compiled to run on the embedded processor.

Vehicle Spy Ethernet Applications

While RAD-Epsilon does not function as an Automotive Ethernet Active Tap, this does not prevent it from taking advantage of some of Vehicle Spy’s many Ethernet applications.

• AVDECC Controller

• SOME I/P Discovery, Subscription, and RPC

• DoIP

• GUI driven Gateway Builder
