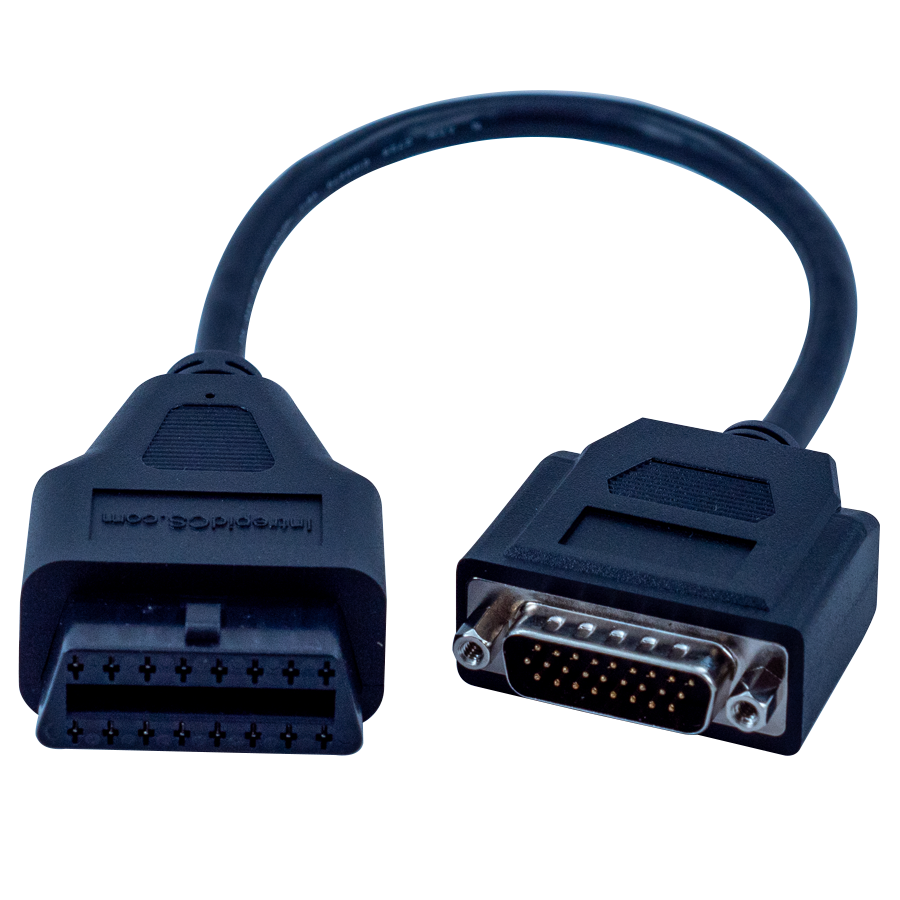

- CompatibilityneoOBD DB26 Cable - J1962 F to DB-26F
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeContact sales for current lead time
- Country of originCN
This versatile cable offers connectivity to devices equipped with DB26 ports, opening up a wide range of compatible systems and expanding the applications of the ValueLOG tool.
Pinout
|
OBD 2 |
Signal |
DB 26 Male Connector |
|
1 |
SW CAN |
26 |
|
2 |
– |
– |
|
3 |
DW CAN 4 H |
12 |
|
4 |
– |
– |
|
5 |
GND |
10 |
|
6 |
DW CAN 1 H |
14 |
|
7 |
LIN 1 |
22 |
|
8 |
ENET ACT |
25 |
|
9 |
DW CAN 2 H |
16 |
|
10 |
DW CAN 2 L |
6 |
|
11 |
DW CAN 4 L |
2 |
|
12 |
DW CAN 3 H |
17 |
|
13 |
DW CAN 3 L |
7 |
|
14 |
DW CAN 1 L |
4 |
|
15 |
– |
– |
|
16 |
VBATT |
19 |
No Specification Provided
No Manuals Provided
| Harmonized Code | 8544420000 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | EA |
| Country of Origin | CN |
