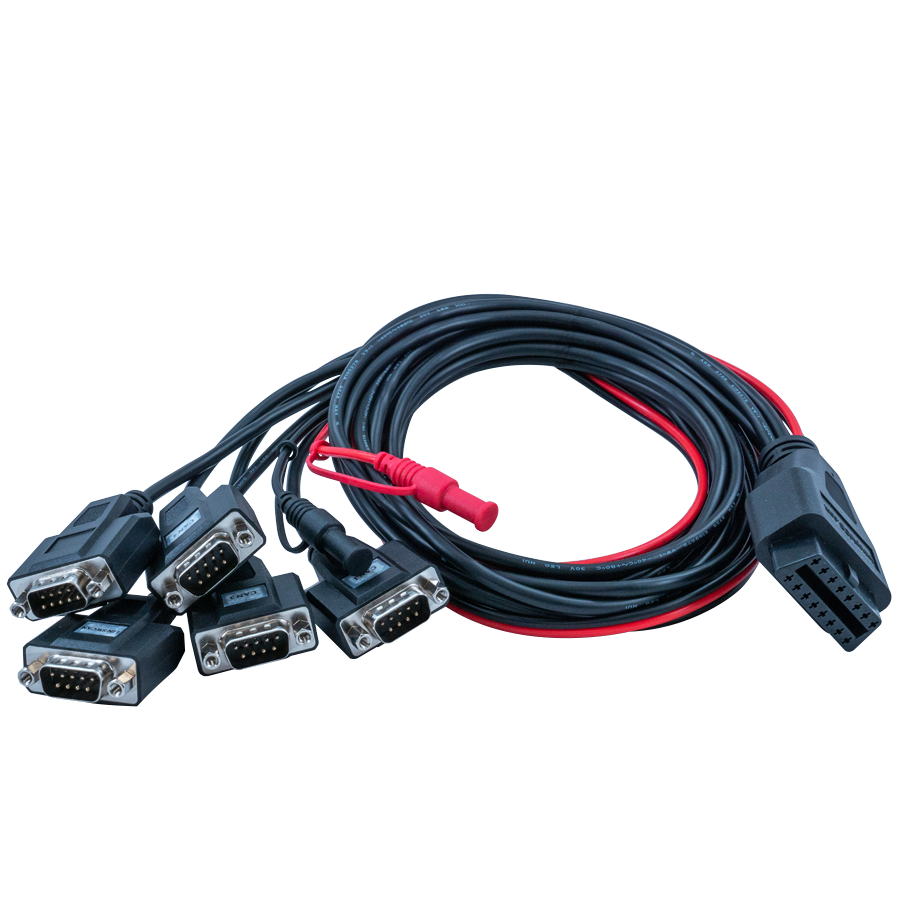

neoOBD Network Splitter Cable - (J1962 F) to 4x DB-9 M + 2x Banana Plugs
neoOBD Network Splitter Cable - (J1962 F) to 4x DB-9 M + 2x Banana Plugs
At a glance
- CompatibilityneoOBD Network Splitter Cable - (J1962 F) to 4x DB-9 M + 2x Banana Plugs
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeContact sales for current lead time
- Country of originCN
This cable is designed to enhance the functionality and compatibility of ValueLOG by providing seamless connectivity between the tool and devices equipped with DB-9 ports. With the ValueLOG OBD2 to 4x DB-9 Adapter Cable, you can connect your ValueLOG to a wide range of devices, expanding its applications and maximizing its utility.
Pinout
|
OBD 2 |
Signal |
CAN 1 Pin # |
CAN 2 Pin # |
CAN 3 Pin # |
CAN 4 Pin # |
LIN / SWCAN |
|
1 |
SW CAN |
– |
-- |
-- |
7 |
|
|
2 |
– |
– |
– |
-- |
7 |
-- |
|
3 |
DW CAN 4 H |
– |
– |
-- |
-- |
-- |
|
4 |
– |
– |
– |
-- |
-- |
-- |
|
5 |
GND |
3 |
3 |
3 |
3 |
3 |
|
6 |
DW CAN 1 H |
7 |
– |
-- |
-- |
-- |
|
7 |
LIN 1 |
– |
– |
-- |
-- |
2 |
|
8 |
– |
– |
– |
-- |
-- |
-- |
|
9 |
DW CAN 2 H |
– |
7 |
-- |
-- |
-- |
|
10 |
DW CAN 2 L |
– |
2 |
-- |
-- |
-- |
|
11 |
DW CAN 4 L |
– |
– |
-- |
2 |
-- |
|
12 |
DW CAN 3 H |
– |
– |
7 |
-- |
-- |
|
13 |
DW CAN 3 L |
– |
– |
2 |
-- |
-- |
|
14 |
DW CAN 1 L |
2 |
– |
-- |
-- |
-- |
|
15 |
– |
– |
– |
-- |
-- |
-- |
|
16 |
VBATT |
– |
– |
-- |
-- |
-- |
No Specification Provided
No Manuals Provided
| Harmonized Code | 8544420000 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | EA |
| Country of Origin | CN |
