neoVI MOTE

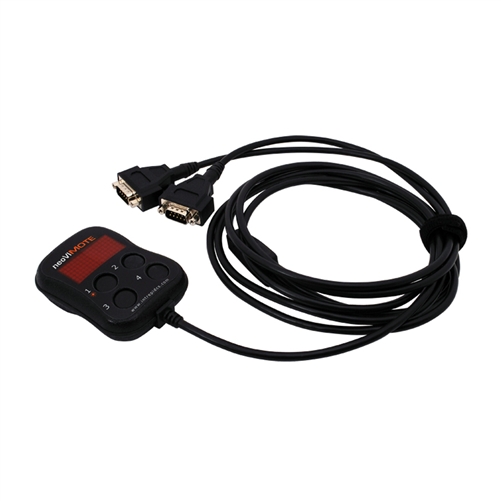

Intrepid Control Systems presents neoVI MOTE. neoVI MOTE is a scriptable CAN node with 4 buttons and audible feedback. Specially designed as a pendant for in-vehicle applications, it easily mounts to the dashboard and has a sunlight readable display.

Note: If you're looking for a simple "pickle switch" for manual triggering, see the neoVI-TRIGGER.

Applications

• Use as triggering device for CAN data logger (works with any CAN tool).
• Use to adjust ECU algorithms on the fly using XCP or CCP.
• Build your own custom diagnostic tool.
• Simulate an ECU and make signals adjustable using buttons.
• Parking lot ECU flashing display.

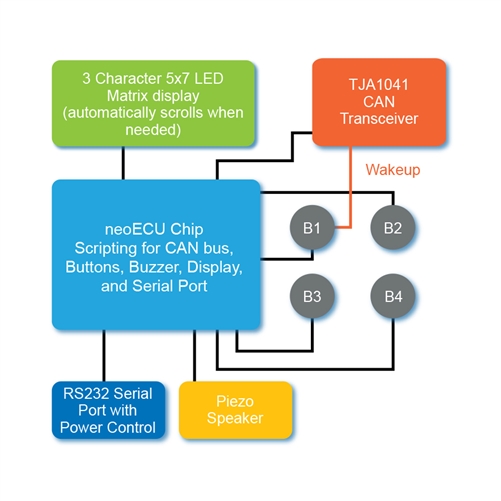

Features

• Power management with automatic CAN or Button wakeup with under 200uA sleep current.
• RS232 port with power control for accessories such as GPRS modem.
• CAN bus with settable termination.
• Buzzer allows different tones via script for various types of audible feedback.
• Sunlight readable display with automatic scroll feature to accommodate text wider than the display.

neoVI MOTE's scripting feature allows you to program the pendant to do complex message transmission and decoding for such protocols as XCP, GMLAN, ISO14229/UDS, and J1939.

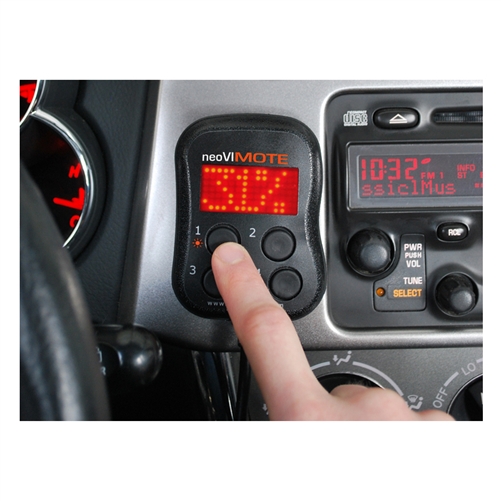

The light weight pendant can be mounted to the dashboard using Velcro ensuring easy reach for the driver.

CAN Connector

Pin	Description
2	HS CAN L
3	Ground
7	HS CAN H
9	VBATT

RS232 Connector

Pin	Description
2	Rx
3	Tx
5	Ground
7	RTS
8	CTS
9	RS232 PR
