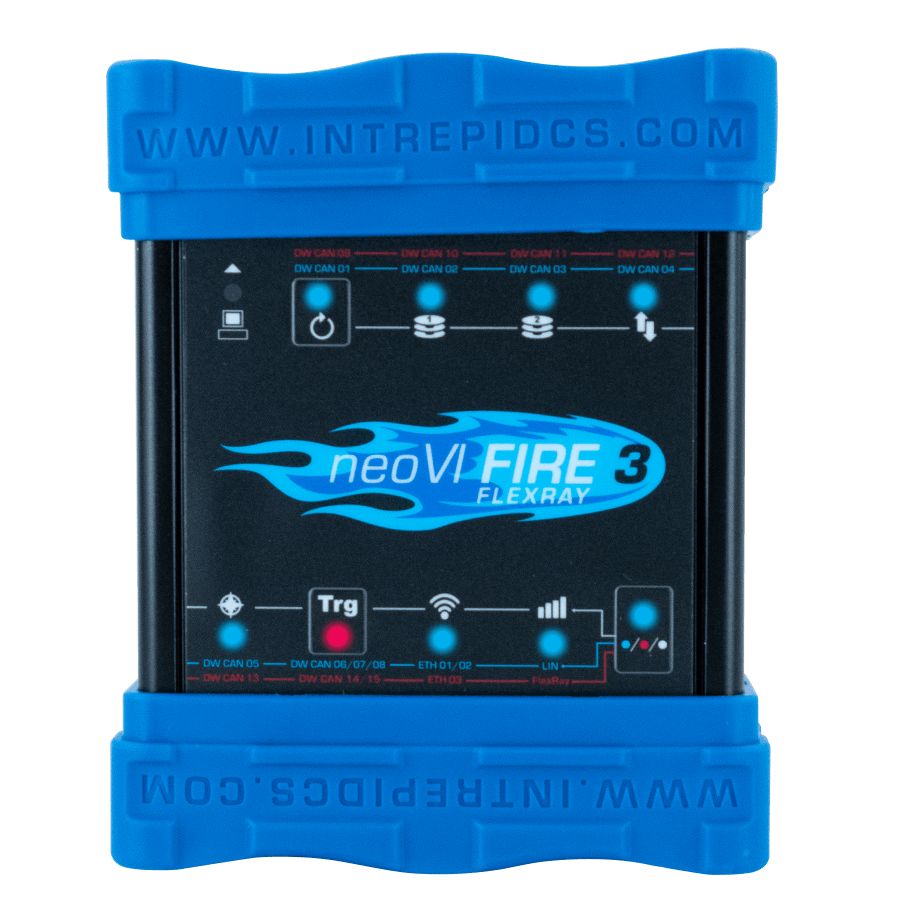

neoVI FIRE 3 FlexRay (2x FlexRay, 15x CAN FD, 4x LIN, 3x Ethernet Interfaces)

Vehicle Network Interface for FlexRay plus Data Logging System with CAN FD and LIN

2x FlexRay, 15x CAN FD, 4x LIN, 3x Ethernet Interfaces

The neoVI FIRE 3 FlexRay device is specially designed to add FlexRay, CAN FD, LIN and 100BASE-TX Ethernet to your application. The neoVI FIRE 3 FlexRay enables quick setup and monitoring of two FlexRay network pairs. In addition, it includes two complete FlexRay nodes, each with channel A and B physical layers, making neoVI the most advanced multi protocol vehicle network interface and data logger available.

The neoVI Fire 3 FlexRay includes 2x FlexRay, 15x CAN FD networks, up to 4x LIN networks, 2x 1Gb  0/100/1000BASE-T, 1x 10/100BASE-Tx. All networks run simultaneously and are hardware time-stamped. A fully-isolated high-speed ethernet interface allows messages to be sent and received without risk of damage to the networks or your computer.

Features

• 2x FlexRay channels
  • Configurable for 1A± / 1B± (1 four wire) or 1A± / 2A± (2 two wire)
  • Selectable on-board termination between 100 ohms, 5 kohm, or no termination
  • Tx and Rx capable
• FlexRay Cold Start (Optional)
• 15x DW CAN / CAN FD channels
• 15x Software enabled CAN termination
• 4x LIN channels
• 2x DoIP activation line
• 2x 1 Gb 10/100/1000BASE-T, 1x 10/100BASE-Tx for use with DoIP, XCPoE and more
• 2x Full-size SD card slots. SD 3.0 compatible and supporting up to 2 terabytes of total storage. Up to 800 Mbps logging (1x 32 GB SD card included standard)
• 4x General Purpose MISC IO
• Real Time Clock for hardware timestamping of all messages and backup at 25ns
• Internal dual-band 802.11a/b/g/n WiFi with software selectable internal or external antenna
• 10x Programmable tri-color LEDs show link, error, and activity status
• Membrane buttons built into device case can be programmed to trigger data logs or other events
• 6 DOF IMU (accelerometer and gyroscope)
• Internal extended temperature battery for safe shutdown
• High precision GPS with external GPS antenna

Features Available in Future

• 1x USB Type-A connector for accessories such as RAD-IO2 or neoVI MIC2 manual trigger
• 4x General Purpose MISC IO
• Instant wake on 2 CAN FD channels
• Intrepid Security Module provides hardware cybersecurity and embedded C Code capability
• Generalized Precision Timing Protocol (gPTP)
• HD video recording via IP Cameras
  • Supports AXIS P-Series and F-Series cameras
  • Supports HD cameras @ 720p and up to 30 FPS
• Up to 4 terabytes of storage with 2x 2 TB SD Cards
• External modem support (RAD-4G)

Applications Fire 3 FlexRay – Connections

• Vehicle network tool
• Standalone data logger
• Wireless data logger with auto-download via WiFi or Ethernet
• Standalone ECU or vehicle simulator
• In-Vehicle data acquisition system
• Captive test fleet data collection
• Fleet management
• Vehicle pass-through interface support with J2534 and RP1210 (GM DPS, GM SPS, Ford DET, DiagRA, Chrysler CDA, etc.)

Benefits

• Interact with the Bosch ERAY FlexRay core using Windows development tools such as Microsoft Visual Studio
• Develop FlexRay / handler ECU code on the PC
• Reconfigure FlexRay networks without using device programmers

Configuration using neoVI Explorer

The FlexRay VNETZ has two dual-channel FlextRay nodes. The user can select whether the second FlexRay Physical layer is 1B or 2A in neoVI Explorer. There are five configurations the user may select: Single Channel Network (1A), Dual-Channel Network (1A, 1B, Two Single-Channel Networks (1A, 2A), Cold Start and Disable. In addition users can select 100 ohm, 2.6 kohm or none for termination on each network.
