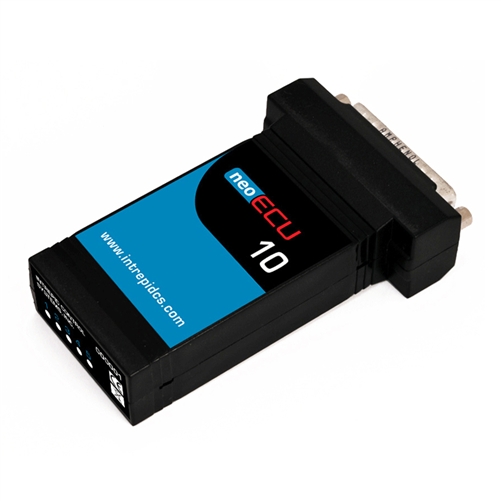

neoECU-10 (2x DW CAN)
- This product will be OBSOLETE, please see the substitute neoECU 12 .
- Requires neoVI Fire /ValueCAN 3 and Vehicle Spy full license to program
This product will be OBSOLETE, please see the substitute neoECU 12.
LOW COST EMBEDDED ECU - Need a scriptable, low cost node for CAN? The neoECU 10 fills this need by providing 2 CAN channels, analog input, and PWM Output. The node runs the Vehicle Spy Core Mini engine for easy setup.
At a glance
- CompatibilityThis product will be OBSOLETE, please see the substitute neoECU 12
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 1 to 2 Business Days
- Country of originUS
This product will be OBSOLETE, please see the substitute neoECU 12.
Need a scriptable, low-cost node for CAN? The neoECU 10 fills this need by providing 2 CAN channels, and PWM Output. The node runs the Vehicle Spy Core Mini engine for easy setup.
Applications:
- Gateway Nodes
- Simulators
- Automated Testers
- ECU Replacement
Features:
- 40 MIPS DSP
- 6.0-26.5V operation (expandable in specific configurations)
- 4 0-26V analog inputs (800K input impedance)
- 6 0-VBATT 50mA low side drivers
- 4 Internal MISC Buttons
- 5 LEDs
- 2x DW CAN
The neoECU-10 requires one Vehicle Spy full license and a neoVI Fire or ValueCAN 3 to program it via CAN. Contact ICS for more details and for specific configurations.
Volume Discount:
Interested in a large quantity of neoECUs? Please contact ICS for potential volume pricing.
|
Pin |
Description |
Pin |
Description |
| 1 | SWCAN | 14 | HS CAN H |
| 2 | MISC WAKE | 15 | HS CAN L |
| 3 | LSFT CAN H | 16 | MS CAN H |
| 4 | LSFT CAN L | 17 | MS CAN L |
| 5 | PWM IO 1 | 18 | PWM IO 3 |
| 6 | PWM IO 2 | 19 | PWM IO 4 |
| 7 | MISC 1 | 20 | PWM IO 5 |
| 8 | 21 | PWM IO 6 | |
| 9 | DBG CLK | 22 | AIN 3 |
| 10 | AIN 1 | 23 | AIN 4 |
| 11 | AIN 2 | 24 | DBG RESET |
| 12 | DEBUG DATA | 25 | VBATT |
| 13 | GNDA |
| Harmonized Code | 9031808080 |
|---|---|
| ECCN | 5A991b |
| Unit of Measure | EA |
| Country of Origin | US |
