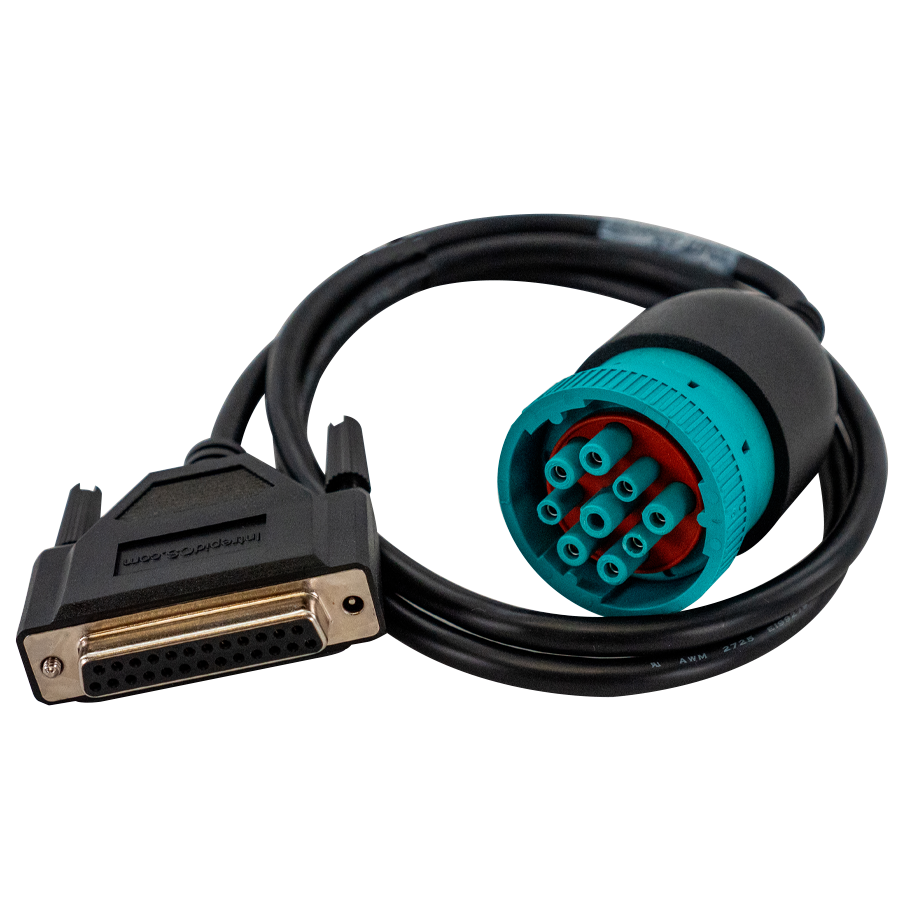

DB-25F to Deutsch 9-Pin Type 2 Cable
Deutsch 9-pin Type 2 (Green) to DB25 connector
At a glance
- CompatibilityDeutsch 9-pin Type 2 (Green) to DB25 connector
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 1 to 2 Days
- Country of originCN
Connects a Deutsch 9-pin Type 2 (Green) connector to devices with DB25 connector. Backwards compatible with J1939 Type 1 (black) connectors. Uses the standard J1939 pinout, including dual CAN channels.
Connector Pinouts and Signal Mapping
| Deutsch Signal | Deutsch Pin # | DB-25F Pin # | DB-25F Signal |
|---|---|---|---|
| Ground (-) | 1/A | 13 | GND |
| Battery (+) | 2/B | 25 | VBATT |
| CAN High (+) | 3/C | 14 | CAN 1 H |
| CAN Low (-) | 4/D | 15 | CAN 1 L |
| CAN Shield | 5/E | Shell | Shield |
| J1708 (+) | 6/F | 5 | CAN 8 H |
| J1708 (-) | 7/G | 6 | CAN 8 L |
| CAN2 High (+) | 8/H | 19 | CAN 3 H |
| CAN2 Low (-) | 9/J | 20 | CAN 3 L |
Note: The table above shows standard signals for the Deutsch 9-pin connector; this includes J1708, which is not supported by current Intrepid hardware devices.
| Length | 6' (1.83 m) |
|---|---|
| Weight | 8.75 oz (247 g) |
No Manuals Provided
| Harmonized Code | 8544429090 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | Each |
| Country of Origin | CN |
