J1939 Type 2 Deutsch 9-Pin to DB-9F Cable

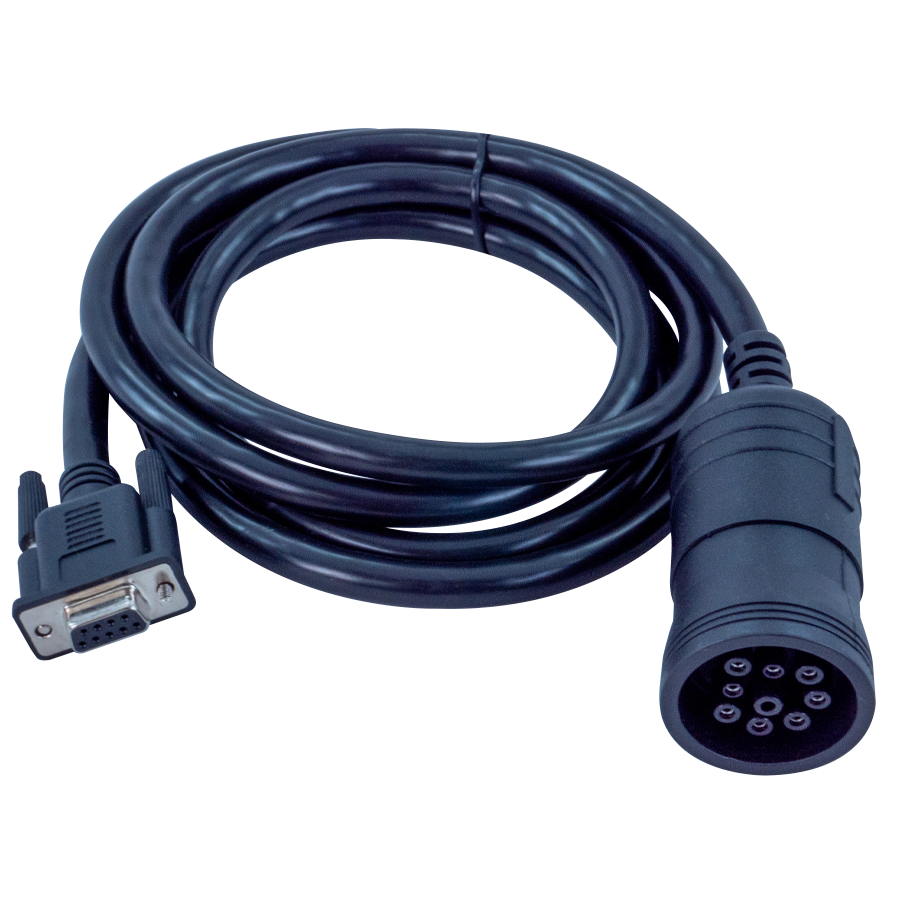

J1939 Type 2 Deutsch 9-Pin to DB-9F Cable. Works on J1939 Type 2 (Green) or Type 1 (Black) Connectors.
At a glance
- CompatibilityJ1939 Type 2 Deutsch 9-Pin to DB-9F Cable
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeContact sales for current lead time
- Country of originCN
Allows a neoVI or ValueCAN device with DB9 to connect to a Deutsch 9-pin (J1939 Type 2) connector. Works on Type 2 (Green) or Type 1 (Black) Connectors.
Connector Pinouts and Signal Mapping
| Deutsch Signal | Deutsch Pin # | DB-9F Pin # | DB-9F Signal |
|---|---|---|---|
| Ground (-) | 1/A | 3 | GND |
| Battery (+) | 2/B | 9 | V+ |
| CAN High (+) | 3/C | 7 | CAN1 High |
| CAN Low (-) | 4/D | 2 | CAN1 Low |
| CAN Shield | 5/E | 5 | GND (Shield) |
| J1708 (+) | 6/F | 8 | CAN2 High |
| J1708 (-) | 7/G | 4 | CAN2 Low |
| CAN2 High (+) | 8/H | N/C | N/C |
| CAN2 Low (-) | 9/J | N/C | N/C |
Note: The table above shows standard signals for the Deutsch 9-pin connector; this includes J1708, which is not supported by current Intrepid hardware devices.
| Length | 6' (1.83 m) |
|---|---|
| Weight | 8.75 oz (247 g) |
