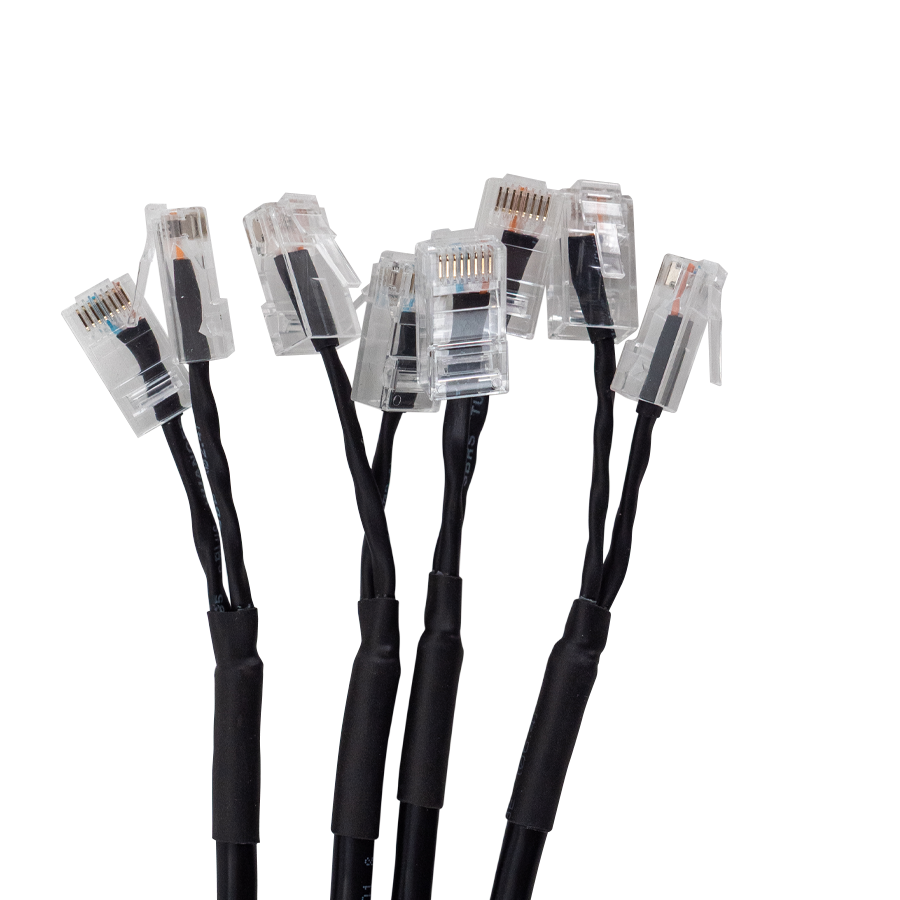

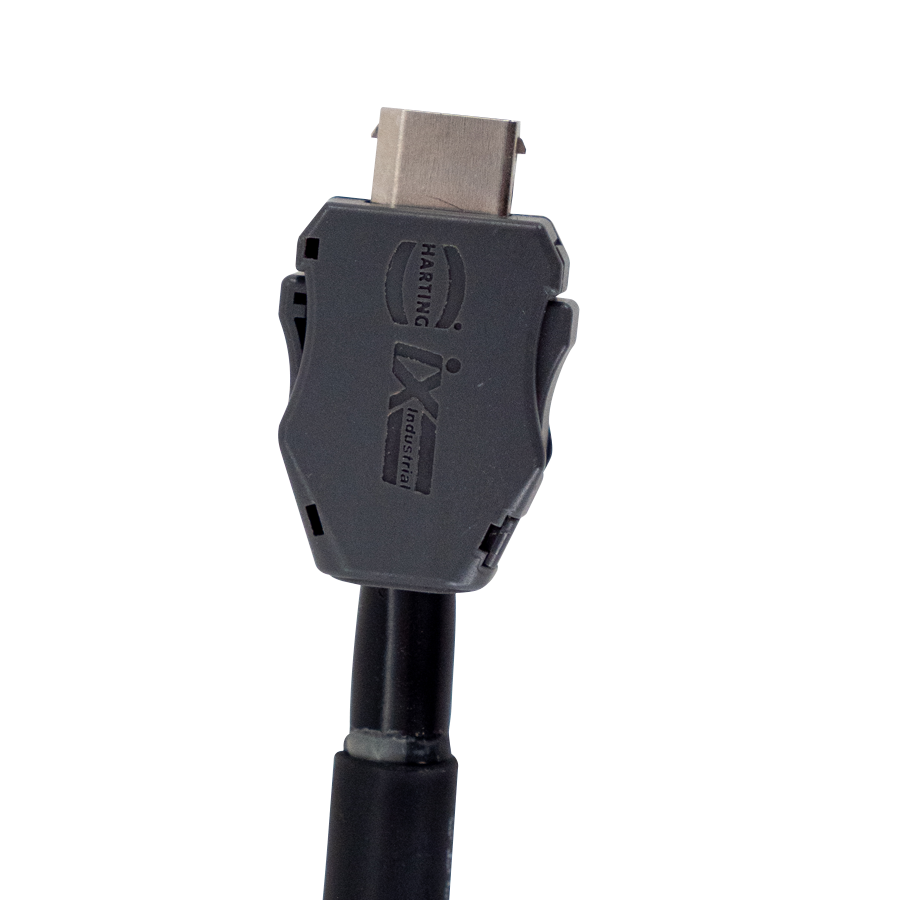

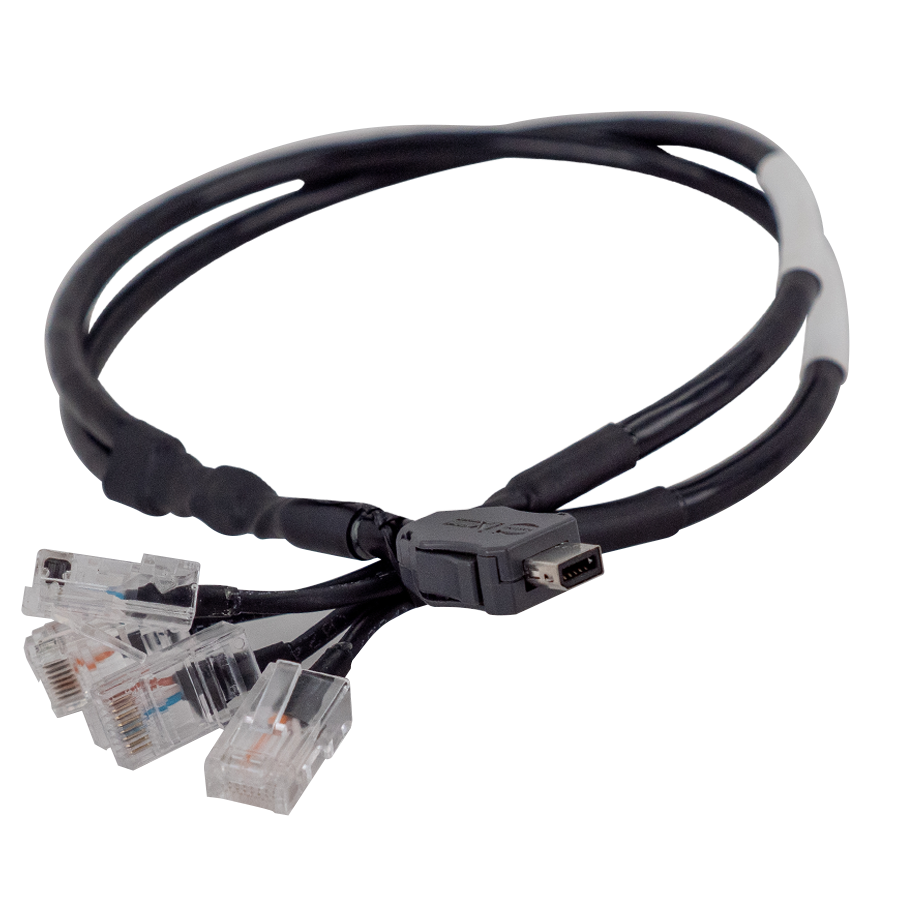

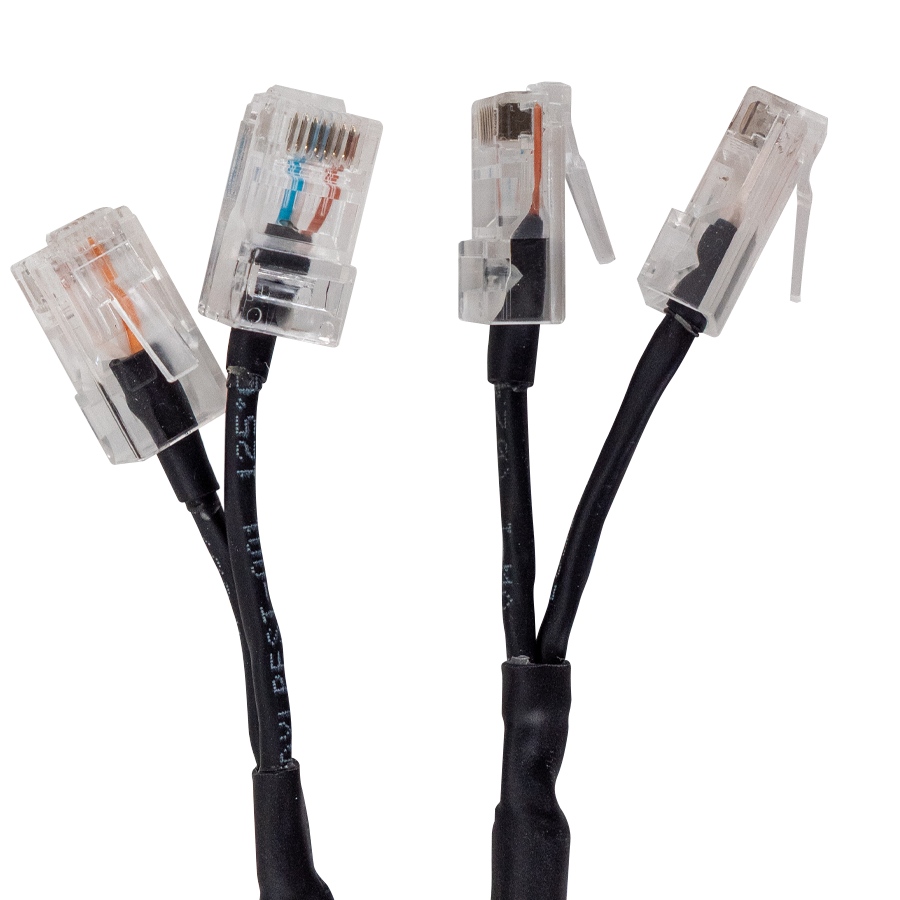

iX to 4x pigtail pairs, 0.3m cable
Cable for use with iX-compatible products having a single iX connector with AE02-AE05 ports, including the RAD-Comet 3. iX Industrial connector to four pigtail pairs, 0.3 meter.
At a glance
- CompatibilityCable for use with iX-compatible products having a single iX connector with AE02-AE05 ports, including the RAD-Comet 3
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 3 to 5 Business Days
- Country of originCN
Cable for use with iX-compatible products having a single iX connector with AE02-AE05 ports, including the RAD-Comet 3. iX Industrial connector to four pigtail pairs, 0.3 meter.
AE02 Channel
| iX Pin | Signal | Connector | Pin |
|---|---|---|---|
| 1 | AE02P | AE02 | 4 |
| 2 | AE02N | AE02 | 5 |
| 3 | GND | AE02 | 8 |
AE04 Channel
| iX Pin | Signal | Connector | Pin |
|---|---|---|---|
| 4 | AE04P | AE04 | 4 |
| 5 | AE04N | AE04 | 5 |
| 3 | GND | AE04 | 8 |
AE03 Channel
| iX Pin | Signal | Connector | Pin |
|---|---|---|---|
| 6 | AE03P | AE03 | 4 |
| 7 | AE03N | AE03 | 5 |
| 8 | GND | AE03 | 8 |
AE05 Channel
| iX Pin | Signal | Connector | Pin |
|---|---|---|---|
| 9 | AE05P | AE05 | 4 |
| 10 | AE05N | AE05 | 5 |
| 8 | GND | AE05 | 8 |
Note :-
- AE02 and AE04 share the ground connection on iX Pin 3.
- AE03 and AE05 share the ground connection on iX Pin 8.
- Each differential pair is routed to the corresponding connector:
- P → Pin 4
- N → Pin 5
- GND → Pin 8
Check product guide of your Intrepid device or the pinout of this cable for compatibility. Intended for an iX connector with four AE networks (AE02-AE05).
