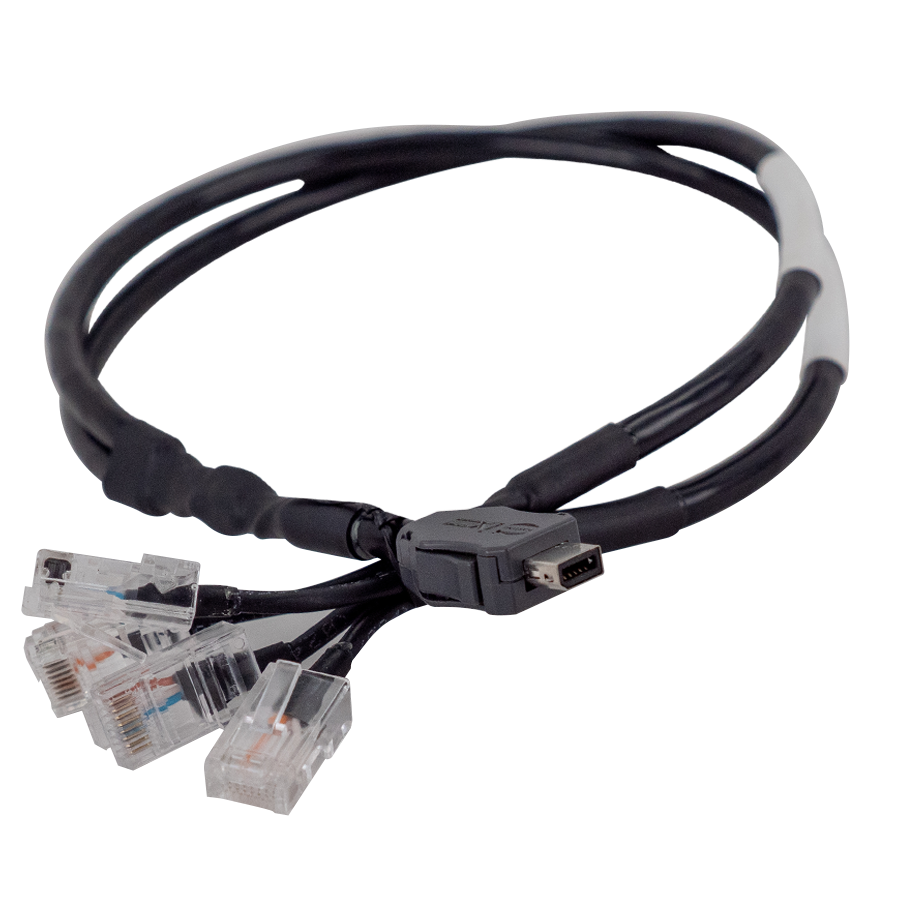

iX to 2x pigtail pairs, 0.3m cable

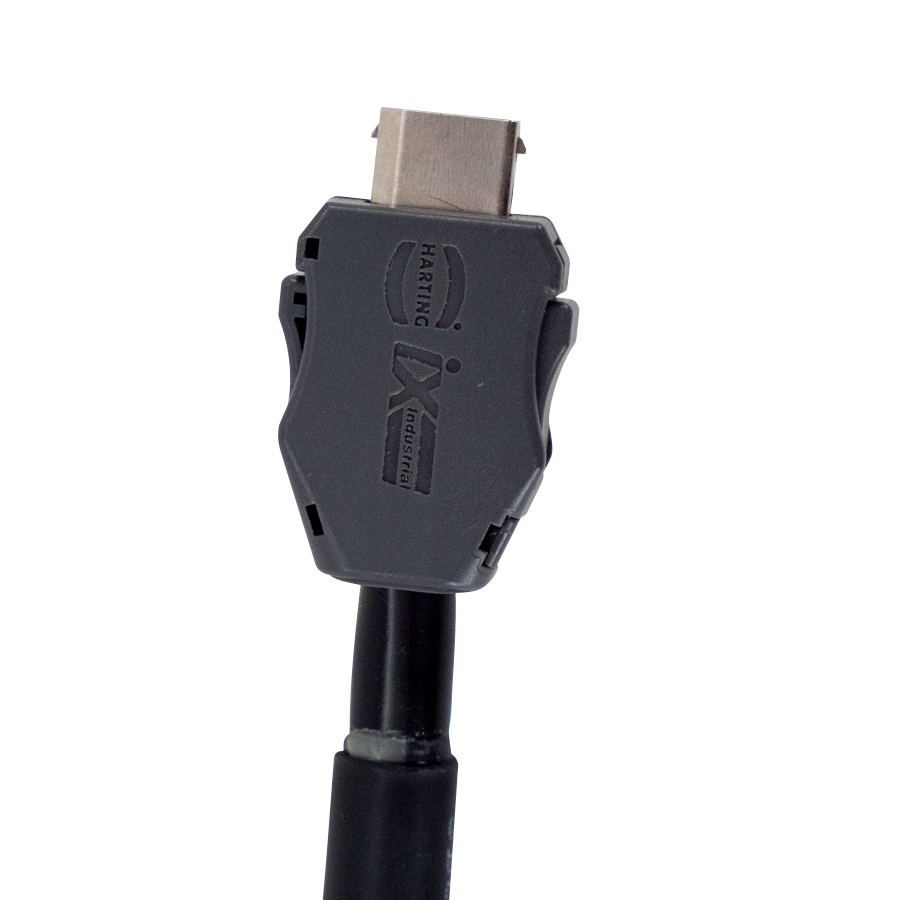

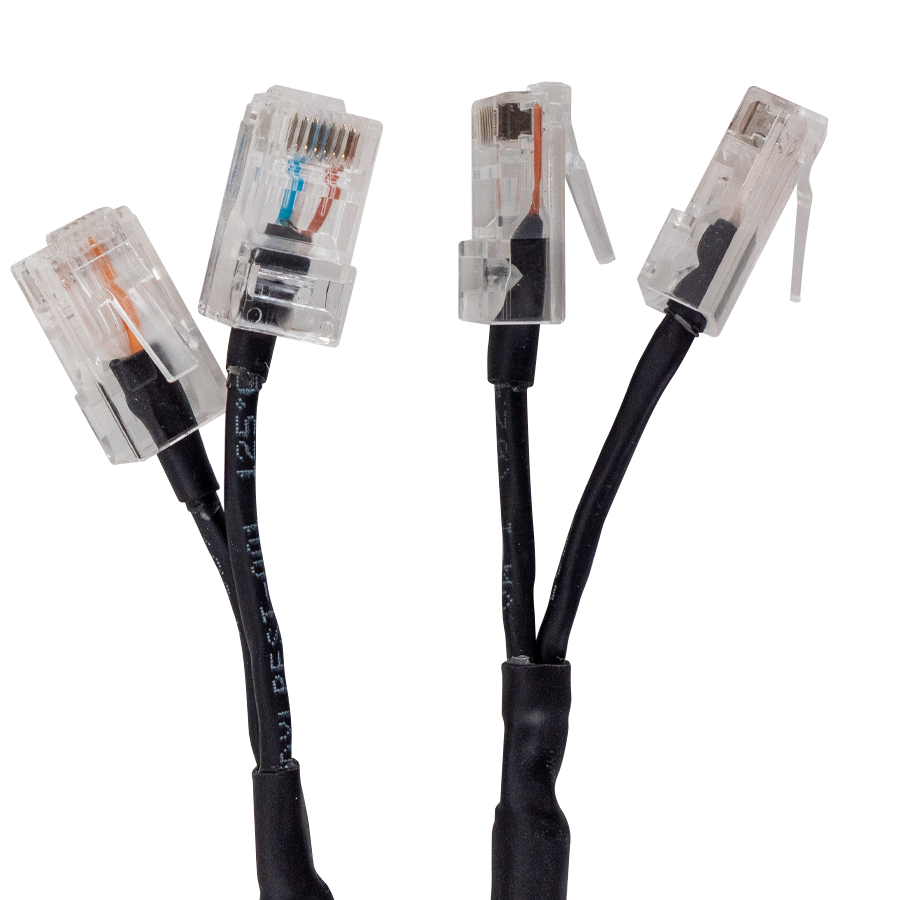

Cable for use with iX-compatible products having a AE06-AE07port, including the RAD-Comet 3. iX Industrial connector to two pigtail pairs, 0.3 meter.
At a glance
- CompatibilityCable for use with iX-compatible products having a AE06-AE07port, including the RAD-Comet 3
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeUsually Ships in 3 to 5 Business Days
- Country of originCN
Cable for use with iX-compatible products having a AE06-AE07port, including the RAD-Comet 3. iX Industrial connector to two pigtail pairs, 0.3 meter.
AE06 Channel
| iX Pin | Signal | RJ45 Connector | RJ45 Pin |
| 1 | AE06P | AE06 | 4 |
| 2 | AE06N | AE06 | 5 |
| 3 | GND | AE06 | 8 |
AE07 Channel
| iX Pin | Signal | RJ45 Connector | RJ45 Pin |
|---|---|---|---|
| 6 | AE07P | AE07 | 4 |
| 7 | AE07N | AE07 | 5 |
| 8 | GND | AE07 | 8 |
Pass-Through Connections
| RJ45 Connector | Pin 4 | Pin 5 | Pin 8 |
|---|---|---|---|
| AE06 | Connected to AE06 Pin 4 | Connected to AE06 Pin 5 | Connected to AE06 Pin 8 |
| AE07 | Connected to AE07 Pin 4 | Connected to AE07 Pin 5 | Connected to AE07 Pin 8 |
NOTE: Check product guide of your Intrepid device or the pinout of this cable for compatibility. Intended for an iX connector with two AE networks (AE06-AE07).
No Specification Provided
No Manuals Provided
| Harmonized Code | 8544429090 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | EA |
| Country of Origin | CN |
