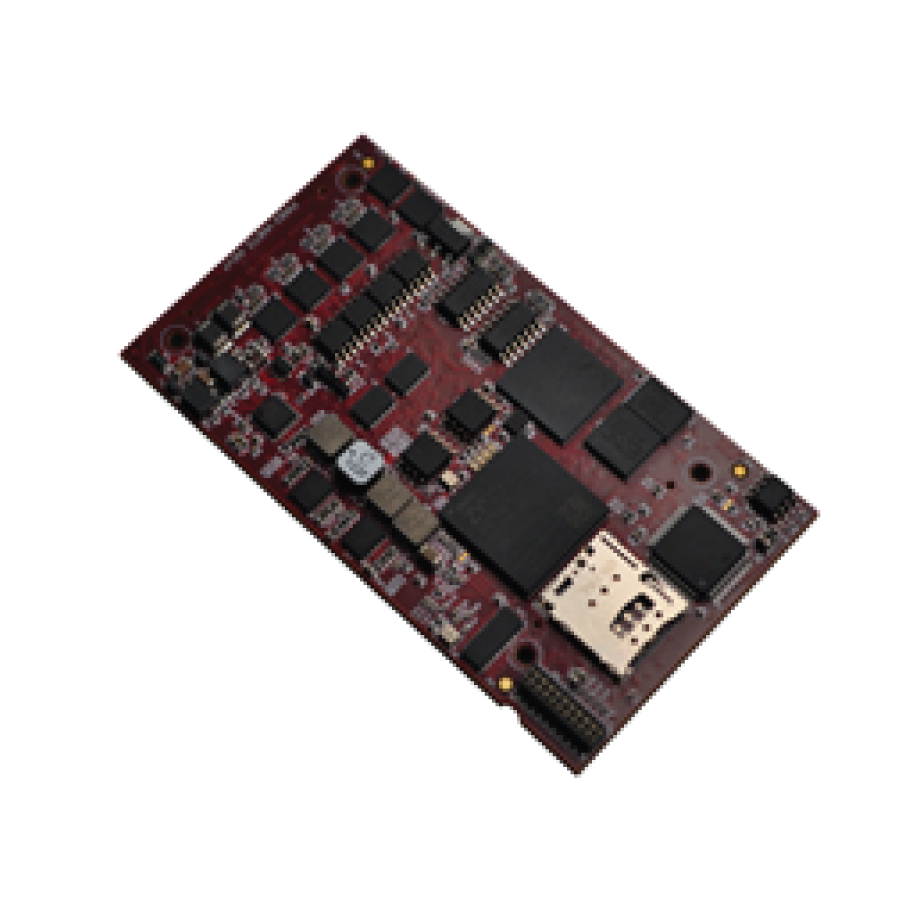

FlexRay VNET Z Module

• Interact with the Bosch ERAY FlexRay core using Windows development tools such as Microsoft Visual Studio
• Develop FlexRay / handler ECU code on the PC
• Reconfigure FlexRay networks without using device programmers

VNETs Make Expansion Easy

If you need more channels, or different channels, just install another VNET. You can mix and match up to three VNETs in a single device. The device must use the FLEXRAY VNET Z as its Primary VNET. Example configurations include:

• 2x FlexRay pairs plus 23x DW CAN (FlexRay VNET Z + 2 FIRE 2 VNETs)
• 2x FlexRay pairs plus 15x DW CAN (FlexRay VNET Z + 1 FIRE 2 VNET)

Features

• Two FlexRay channels
• Configurable for 1A± / 1B± (1 four wire) or 1A± / 2A± (2 two wire)
• Selectable on-board termination between 100 ohms, 2.5 kohm, or no termination
• Tx and Rx capable
• 7x CAN FD channels with selectable on-board termination
• 1x 10/100BASE-TX (DoIP, XCPoE)
• Software controlled DoIP Activation line
• Fully supports data logging, CoreMini scripting, Wiireshark and Vehicle Spy
• 5.5-24V power range, compatible with in-vehicle power
• Embedded C Code Capable
• Cybersecurity via the ISM (Encryption, Authentication, and more)

VNETs Operate Independently or Together

Although independent, VNETs record data with a single timestamp onto the neoVI’s SD cards.

VNETs Operate via USB or Wireless Interface

All VNETs are accessible via USB, like our popular neoVI network adapters. They are also accessible and programmable via wireless interfaces. This makes the neoVI ideal for any application, whether you’re data logging in a remote area, on the test track, or running a test stand with multiple ECUs.

Configuration using neoVI Explorer

The FlexRay VNET Z has two dual-channel FlexRay nodes. The user can select whether the second FlexRayPhysical layer is 1B or 2A in neoVI Explorer. There are five configurations the user may select: Single ChannelNetwork (1A), Dual-Channel Network (1A, 1B), Two Single-Channel Networks (1A, 2A), Cold Start and Disable. In addition users can select 100 ohm, 2.6 kohm or none for termination on each network.

neoVI DLL, J2534, Linux, and RP1210 Support

For those who prefer to write their own software, the FlexRay VNET Z supports the neoVI DLL open API. This API includes examples for all popular development environments, including C#, VB .NET, C++ Builder, Visual C++ and LabWindows. We also have examples and drivers for Linux.

Configuration using neoVI Explorer

The FlexRay VNETZ has two dual-channel FlextRay nodes. The user can select whether the second FlexRay Physical layer is 1B or 2A in neoVI Explorer. There are five configurations the user may select: Single Channel Network (1A), Dual-Channel Network (1A, 1B, Two Single-Channel Networks (1A, 2A), Cold Start and Disable. In addition users can select 100 ohm, 2.6 kohm or none for termination on each network.

Hardware-in-the-Loop Real-Time Performance

The FlexRay VNET Z includes a real-time scripting engine for real-time messaging. For example, you can create an application to load a script into the hardware and interface with the script variables, allowing microsecond-level measurement and control. Vehicle Spy, through its Hardware Acceleration feature, can also send real-time functions to the device, such as periodic messaging, replay, or scripting.

Vehicle Spy Application Software

Our Vehicle Spy software fully supports the FlexRay VNET Z. You can use Vehicle Spy to monitor and transmit on all FlexRay VNET networks simultaneously, as well as its CAN FD networks and Ethernet interface. A Vehicle Spy Enterprise license is required for use of the FLEXRAY VNET Z online or to configure standalone functions. Take advantage of the powerful VehicleScape DAQ interface to quickly load databases, select signals and auto-generate complex scripts. Send, start and stop scripts via USB or the Wireless neoVI server application. Leverage VehicleScape DAQ scripts by modifying them to make a custom solution.

Pinouts
