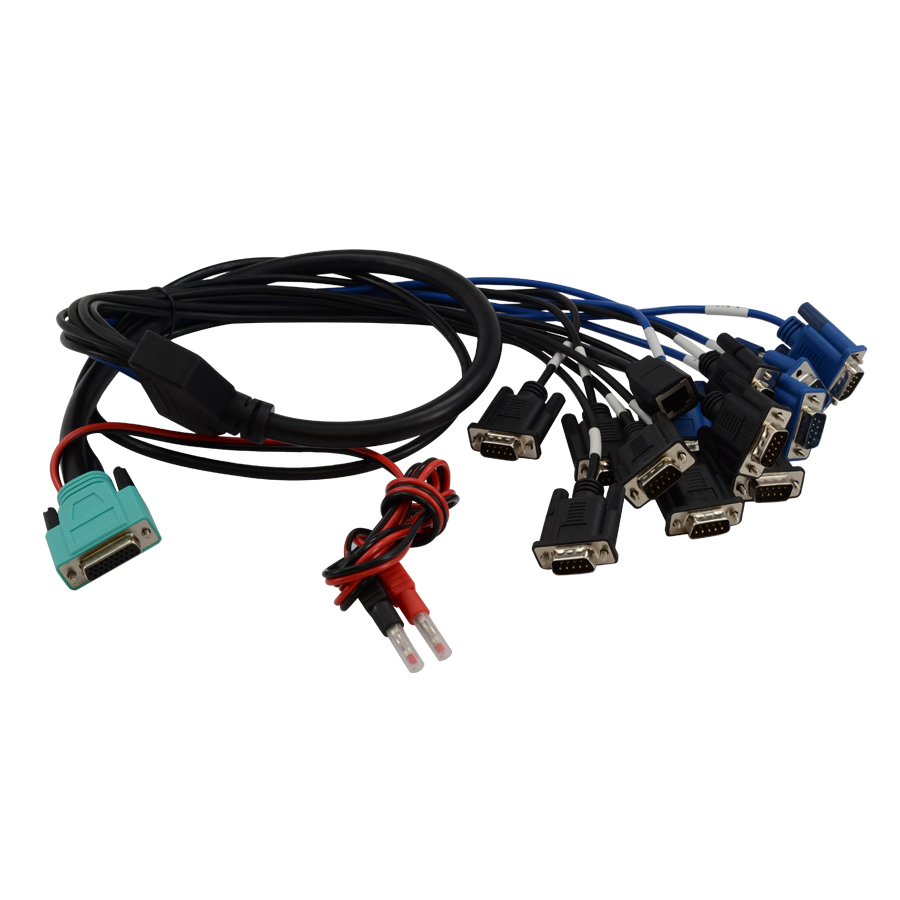

Fire 2 Breakout Cable (DB-26HD Female to 12x DB-9M + 1x RJ-45 + 2x Banana Plugs)
This cable breaks out the DB-26HD Female connector on the Fire2 VNET to individual DB-9M connectors for multiple 8 x CAN and 4 x LIN channels, plus an additional RJ-45 connector for DoIP and two banana plugs for power. This cable also has a switchable 2x SWCAN channel and 1x Individual MSCAN cable.
At a glance
- CompatibilityThis cable breaks out the DB-26HD Female connector on the Fire2 VNET to individual DB-9M connectors for multiple 8 x CAN and 4 x LIN channels, plus an additional RJ-45 connector for DoIP and two banana plugs for power
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeContact sales for current lead time
- Country of originCN
Overview
This cable breaks out the DB-26HD Female connector on the Fire2 VNET to individual DB-9M connectors for multiple CAN and LIN channels, plus an additional RJ-45 connector for DoIP and two banana plugs for power. This cable also has a switchable 2x SWCAN channel and 1x Individual MSCAN cable.
Connector Pinouts and Signal Mapping
HSCAN, MSCAN and Switchable SWCAN
| Pin #(HD26F) | 04 | 14 | 05 | 15 | 06 | 16 | 7 | 17 | 02 | 12 | 03 | 13 | 08 | 18 | 21 | 26 |
| Signal (DB 9M) | HSCAN1 | MSCAN | HSCAN2 | HSCAN3 | HSCAN4 | HSCAN5 | HSCAN6/ SWCAN2 | HSCAN7/ SWCAN1 | ||||||||
| CAN Low | 2 | |||||||||||||||
| CAN High | 7 | |||||||||||||||
| GND/PWR | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||
| Pin # (HD26F) | 22 | 23 | 24 | 25 |
| Signal (DB 9M) | LIN1 | LIN2 | LIN3 | LIN4 |
| 2 | 2 | 2 | 2 | |
| GND/PWR | 3 | 3 | 3 | 3 |
| Pin # (HD26F) | 01 | 09 | 11 | 20 |
| Pin # RG45 | 01 | 02 | 03 | 06 |
| Signal | ETH TX+ | ETH TX - | ETH RX+ | ETH RX - |
| Pin #(HD26F) | 19 | 10 |
| Plugs | PWR+ | GND- |
No Specification Provided
No Manuals Provided
| Harmonized Code | 8544110030 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | Each |
| Country of Origin | CN |
