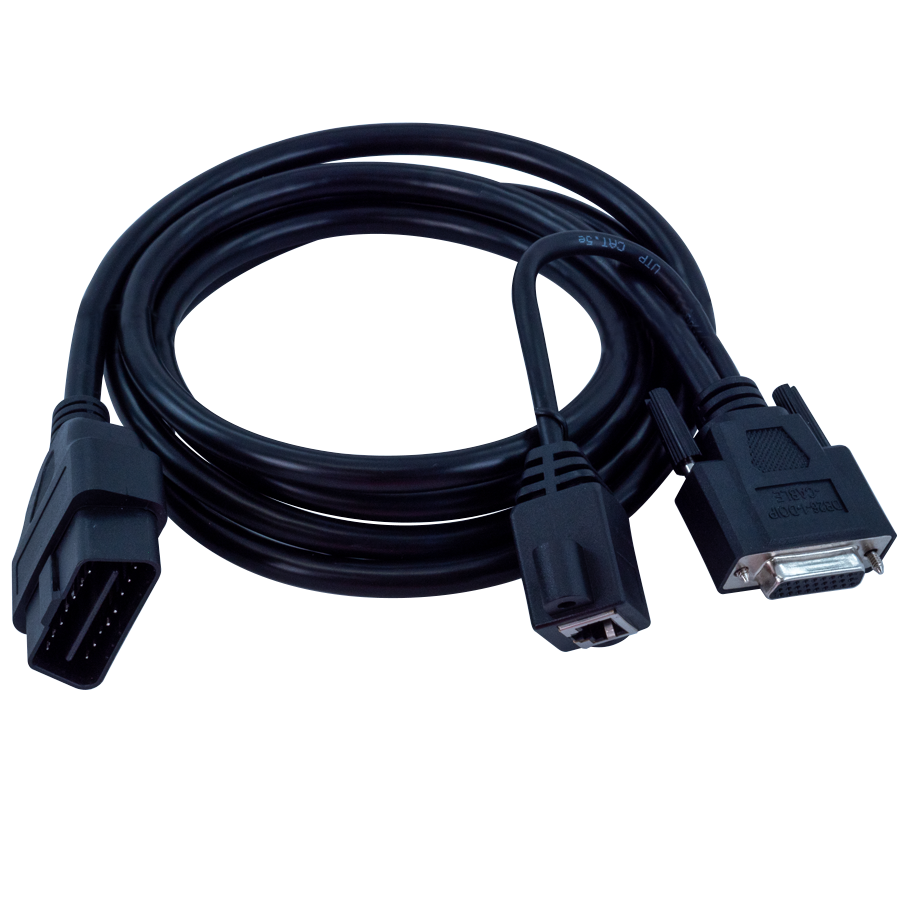

OBD Cable for Diagnostics over IP (DoIP) Support (HD-26F + RJ-45 to OBD-II)
Connects the DB26-1 connector on the neoVI Fire 3 / Red 2 Series to an OBD-II (J1962) connector for DoIP. RJ-45 on this cable is connected to ETH01 port via a separate CAT6 cable for DoIP functionality.
At a glance
- CompatibilityConnects the DB26-1 connector on the neoVI Fire 3 / Red 2 Series to an OBD-II (J1962) connector for DoIP
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeContact sales for current lead time
- Country of originCN
DB26-1-DOIP-CABLE pinout and description as below.
| DB26 Pin | Signal | OBD-II Pin | RJ45 Pin |
| 1 | DW CAN 3 H | 17 | - |
| 2 | DW CAN 2 H | 16 | - |
| 3 | ETH RX+ | - | 1 |
| 4 | GND | - | - |
| 5 | GND | 10 | - |
| 6 | DW CAN 1 H | 14 | - |
| 7 | HS CAN 4 H | 12 | - |
| 8 | ETH ACTIVATION | 25 | - |
| 9 | DW CAN 3 L | 7 | - |
| 10 | DW CAN 2 L | 6 | - |
| 11 | ETH RX- | - | 2 |
| 12 | ETH TX+ | - | 3 |
| 13 | ETH TX- | - | 6 |
| 14 | DW CAN 1 L | 4 | - |
| 15 | HS CAN 4 L | 2 | - |
| 16 | PWR | 19 | - |
| Length | 7' (2.13 m) |
|---|---|
| Weight | 11.125 oz (317 g) |
No Manuals Provided
| Harmonized Code | 8544429090 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | Each |
| Country of Origin | CN |
