Breakout Cable (DB-26HD Female to 11x DB-9M + 2x Banana Plugs)

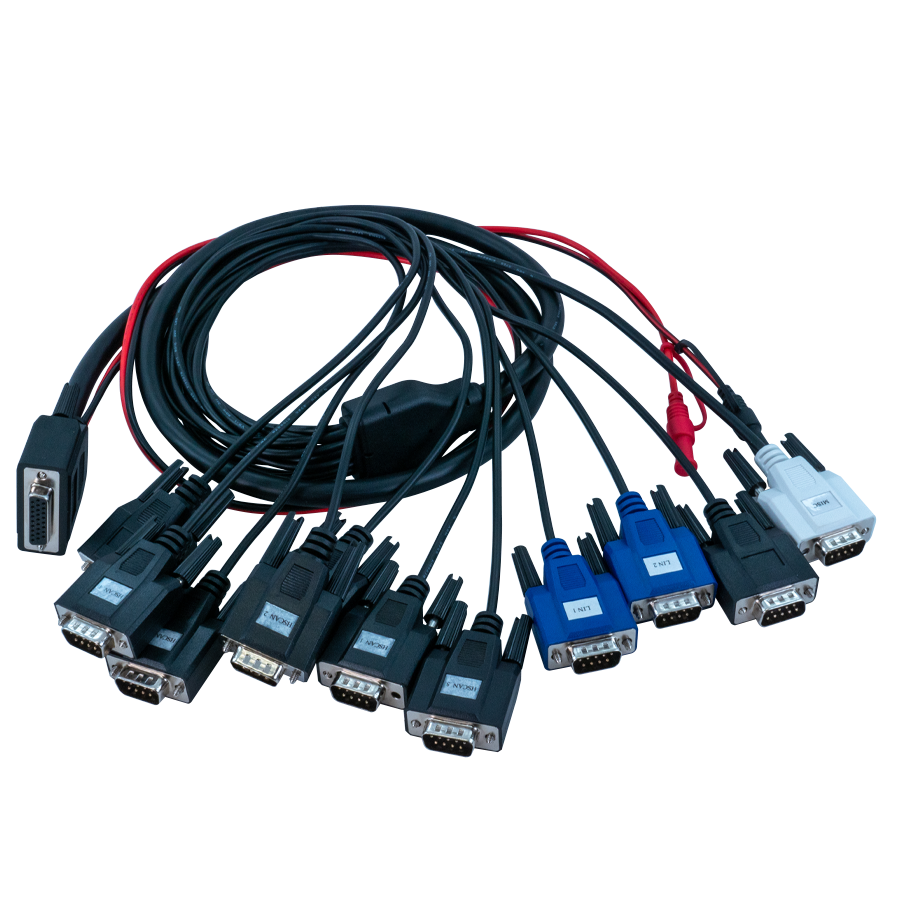

This cable breaks out the DB-26HD Female connector on the DB26 connector of the neoVI Red 2 and the DB26-1 connector on the neoVI Fire 3 to separate DB-9M connectors for 8x CAN, and 2x LIN;and 1x DB9 for all remaining MISC IO, External Wake and DoIP Activation.Two banana plugs are provided to connect power to the neoVI.
At a glance
- CompatibilityThis cable breaks out the DB-26HD Female connector on the DB26 connector of the neoVI Red 2 and the DB26-1 connector on the neoVI Fire 3 to separate DB-9M connectors for 8x CAN, and 2x LIN;and 1x DB9 for all remaining MISC IO, External Wake and DoIP Activation
- Key interfacesSee Specifications tab
- Included itemsNo bundled accessory list provided
- Lead timeContact sales for current lead time
- Country of originCN
Overview
This cable breaks out the DB-26HD Female connector on the DB26 connector of the neoVI Red 2 and the DB26-1 connector on the neoVI Fire 3 to separate DB-9M connectors for 8x CAN, and 2x LIN; and 1x DB9 for all remaining MISC IO, External Wake and DoIP Activation. Two banana plugs are provided to connect power to the neoVI.
Connector Pinouts and Signal Mapping
| Pin # (HD26F) | 04 | 14 | 05 | 15 | 06 | 16 | 7 | 17 | 02 | 12 | 03 | 13 | 08 | 18 | 21 | 26 |
| Signal (DB 9M) | HSCAN1 | HSCAN8 | HSCAN2 | HSCAN3 | HSCAN4 | HSCAN5 | HSCAN6 | HSCAN7 | ||||||||
| CAN Low | Pin 2 | |||||||||||||||
| CAN High | 7 | |||||||||||||||
| GND/PWR | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||
| Pin # (HD26F) | 22 | 23 |
| Signal (DB 9M) | LIN1 | LIN2 |
| 2 | 2 | |
| GND/PWR | 3 | 3 |
| Pin # DB26 | 1 | 9 | 11 | 20 | 24 | 25 |
| Pin # DB9 | 6 | 7 | 8 | 9 | ||
| Signal | MISC 1 | MISC 2 | MISC 3 | MISC 4 |
| Pin #(HD26F) | 19 | 10 |
| Plugs | PWR+ | GND- |
No Specification Provided
No Manuals Provided
| Harmonized Code | 8544429090 |
|---|---|
| ECCN | EAR99 |
| Unit of Measure | Each |
| Country of Origin | CN |
