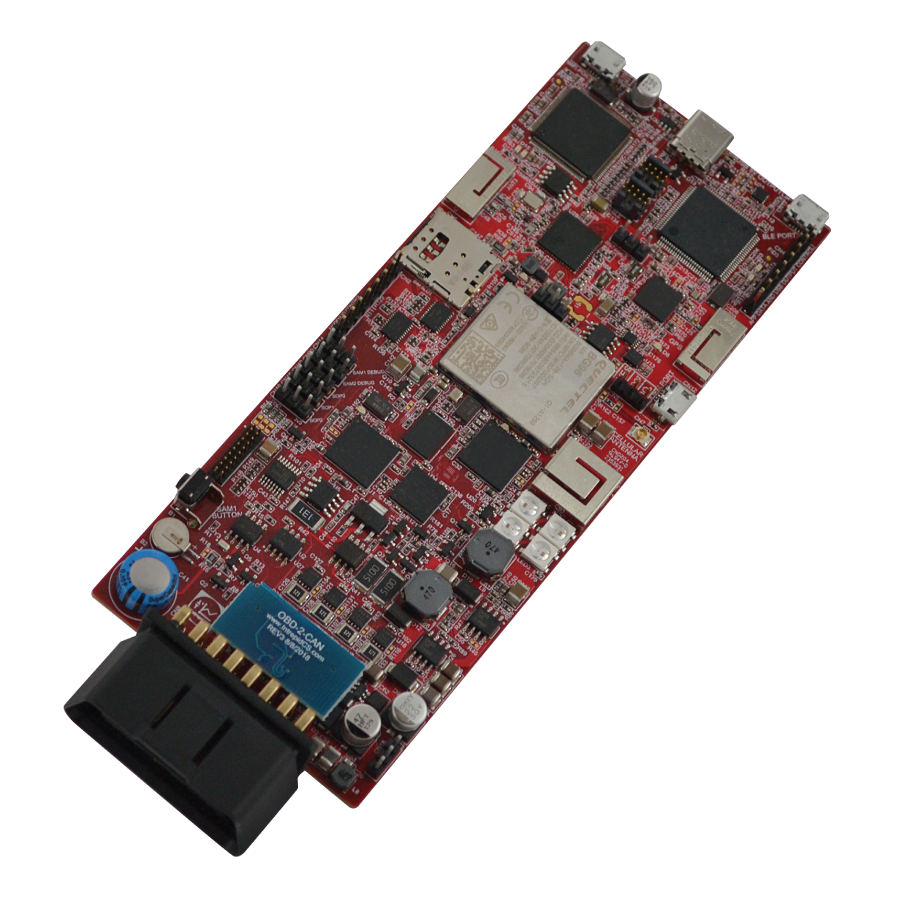

neoOBD2 Dev - Development Kit for Automotive Enterprise IoT
neoOBD 2 DEV

Does not include Vehicle Spy license.
$1,495.00

Availability:: Usually Ships in 4 to 6 Weeks
Product Code: NEOOBD2-DEV
Qty:



The following items are included with this product:

Description

You know IOT, and Intrepid knows how to get automotive data. The neoOBD 2 Dev is the key to combining these knowledge areas. Getting automotive data in a form ready for IoT has never been easier.

Key Features
  • 4x CAN FD
    • 3x Fixed CAN FD
    • 1x Switchable CAN FD/SW CAN
  • 1x LIN / K-Line
  • 4x Programmable Tricolor LEDs
  • 1x Programmable Push Button
  • LTE-M1 / NB1 / EGPRS Cellular Modem with built-in GPS
  • 8GB eMMC Storage
  • Open ARM Cortex M4 Wi-Fi and BLE MCUs to host your automotive IoT applications
  • Intrepid’s secure API provides complete access to all vehicle network data from Wireless MCUs
  • neoOBD2 SDK with sample projects and documentations available for AWS IoT Core and Microsoft Azure IoT Hub connectivity
  • The Wi-Fi MCU is compatible with most IoT platforms in the market including AWS IoT, Google Cloud, Microsoft Azure, and IBM Watson
  • General purpose engineering tool for OBD, enabling a wide array of applications such as data logging, simulation and gatewaying
  • Prototype new cybersecurity solutions for vehicle networks

Open Wireless MCUs with Full Access to Vehicle Networks neoOBD2 DEV is a versatile development board for building connected applications for CAN, CANFD, LIN, and KLINE networks using Wi-Fi, Bluetooth Low Energy, and LTE-M1 / NB1 cellular modem with built-in GPS.

neoOBD2 DEV features USB connection for interfacing with Intrepid’s Vehicle Spy PC software. This allows customers to take full advantage of all the features that Vehicle Spy provides. Vehicle Spy is a single software for diagnostics, node/ECU simulation, data acquisition, automated testing, and in-vehicle communication network bus monitoring.

The Freedom to Create your own Automotive IoT Solution neoOBD2 DEV features USB connection for interfacing with Intrepid’s Vehicle Spy PC software. This allows customers to take full advantage of all the features that Vehicle Spy provides. Vehicle Spy is a single software for diagnostics, node/ECU simulation, data acquisition, automated testing, and in-vehicle communication network bus monitoring.
For Wi-Fi applications, the neoOBD2 DEV features a programmable Wi-Fi MCU from Texas Instruments called CC3235SF Simplelink Wi-Fi IoT MCU. The MCU features a dual core System on Chip (SoC) architecture with a Network processor that fully implements the Wi-Fi stack and a separate ARM Cortex M4 applications processor that can be used to host user applications. The application uses high level software APIs provided by TI to interact with the Wi-Fi network processor. This significantly reduces the code size and time to market as no network drivers such as TCP, MQTT, and HTTPS need to be re-invented.
For BLE applications, the neoOBD2 DEV features nRF52840, a programmable Bluetooth 5.2 SoC from Nordic Semiconductor supporting Bluetooth Low Energy, Bluetooth mesh, NFC, Thread and Zigbee. The SoC features a fully implemented Bluetooth Low Energy protocol stack that can be accessed from your ARM Cortex M4 application using simple API calls. The stack fully implements the Bluetooth GAP, GATT, ATT, SM, L2CAP, and Link Layer and also comes with a set of libraries that implement registered BLE services. You have the complete freedom to create any custom BLE services and characteristics as well. This SoC approach greatly reduces the code size and time to market, allowing developers to focus on application logic with no need to re-invent any of the BLE protocols.
The neoOBD2 DEV also features BG96 from Quectel, a LPWA LTE-M1 / NB1 cellular modem with built-in GPS. You have the option to host your application on either the CC3235SF Wi-Fi MCU or the nRF52840 BLE SoC by using the AT command driver provided by Intrepid.
To access vehicle network data, the host application running on the CC3235SF Wi-Fi SoC uses Intrepid’s vehicle network communication API called the Intrepid Secure Module (SIM) API. The ISM API is available as a pre-compiled static C library that can be linked with the host application. The API consists of high level C functions to receive and transmit messages across the CAN, LIN, and DoIP Ethernet networks.
Vehicle Spy Application Software Intrepid’s Vehicle Spy software fully supports the neoOBD 2 DEC. With Vehicle Spy, users can monitor and transmit on all neoOBD 2 PRO networks simultaneously. Vehicle Spy is required to configure standalone mode. Users can take advantage of the powerful interface to load databases and to write and debug scripts before downloading them to the device.

Standalone Logging, Scripting, Gateways and Simulation
In addition to working as a PC interface, the neoOBD 2 DEV can operate in standalone mode. It can run real-time scripts, log data to internal flash memory, and simulate ECUs and gateways. These features also make it possible to run a script to reflash ECUs using data from flash memory.

Included in Box
  • 1 of neoOBD2 Programming Cable (Dual USB A to USB-C)
